Comparing different codecs for intraframe 422p10 encoding only @4k, so no compression from frame to frame, ideal if you need to quickly seek to a frame for fast playback.
| Test Name |
Test Results |

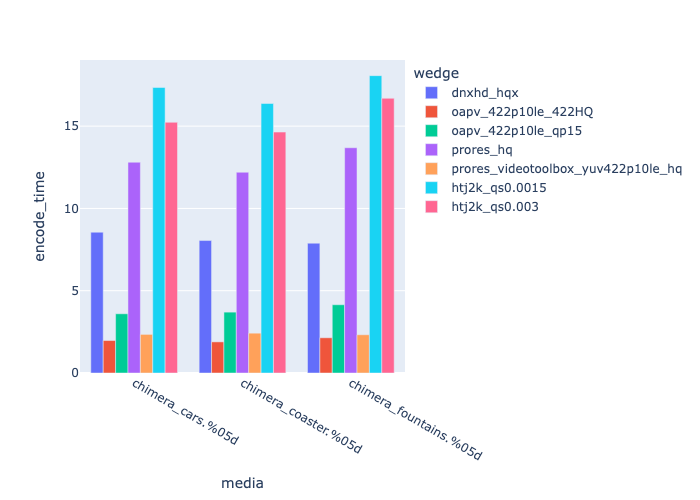

Encode Duration |

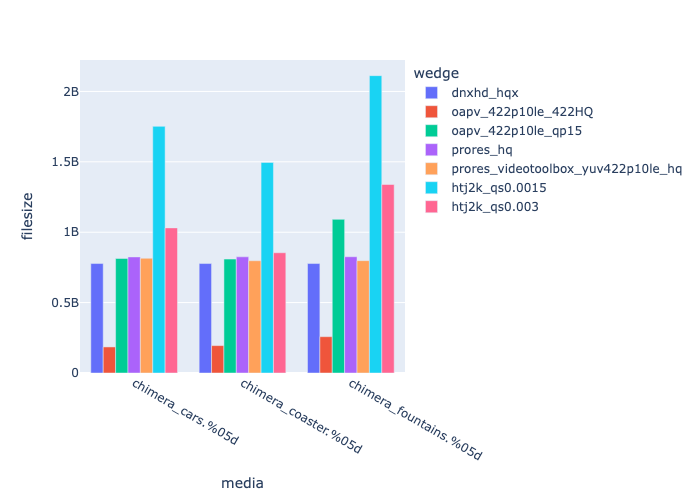

File Size |

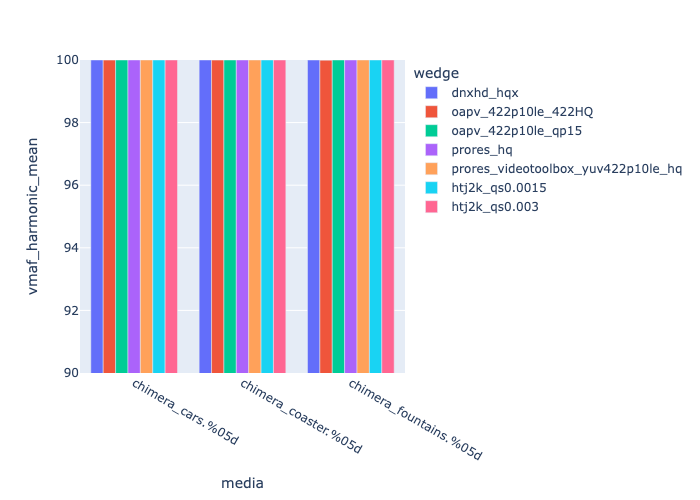

VMAF Harmonic Mean |

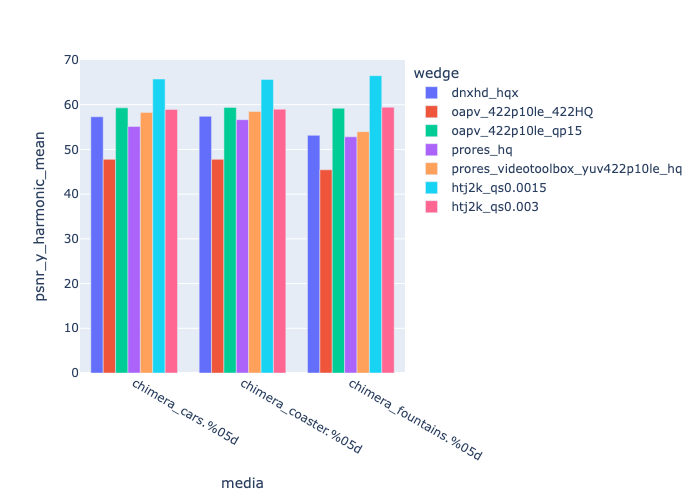

PSNR-Y Harmonic Mean |
CAMBI Harmonic Mean |
MS-SSIM Harmonic Mean |
Encode Arguments |
| test_intra4k_mov-dnxhd_hqx |
Test frame= 1 fps=0.2 q=0.0 Lsize= 1173KiB time=00:00:00.04 bitrate=240168.4kbits/s speed=0.0061x elapsed=0:00:06.55 |
8.5548 |
777,422,387 |
100.0 |
57.309374 |
0.0 |
0.999804 |
-c:v dnxhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv422p10le -profile:v dnxhr_hqx -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra4k_mov-oapv_422p10le_422HQ |
Test frame= 1 fps=0.2 q=0.0 Lsize= 3204KiB time=00:00:00.04 bitrate=656076.8kbits/s speed=0.00611x elapsed=0:00:06.54 |
1.9723 |
185,093,298 |
99.996497 |
47.784606 |
0.0 |
0.997657 |
-c:v liboapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -oapv-params profile=422-10:family=422-HQ -pix_fmt yuv422p10le -preset fast -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra4k_mov-oapv_422p10le_qp15 |
Test frame= 1 fps=0.2 q=0.0 Lsize= 1108KiB time=00:00:00.04 bitrate=226936.8kbits/s speed=0.00625x elapsed=0:00:06.40 |
3.5977 |
813,490,728 |
100.0 |
59.301369 |
0.0 |
0.999862 |
-c:v liboapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv422p10le -preset fast -qp 15 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra4k_mov-prores_hq |
Test frame= 1 fps=0.2 q=0.0 Lsize= 1399KiB time=00:00:00.04 bitrate=286573.0kbits/s speed=0.00611x elapsed=0:00:06.54 |
12.8064 |
824,411,389 |
100.0 |
55.145157 |
0.0 |
0.999726 |
-c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv422p10le -profile:v hq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra4k_mov-prores_videotoolbox_yuv422p10le_hq |
Test frame= 1 fps=0.1 q=0.0 Lsize= 1060KiB time=00:00:00.04 bitrate=217143.8kbits/s speed=0.00597x elapsed=0:00:06.70 |
2.3451 |
814,924,591 |
100.0 |
58.290002 |
0.0 |
0.999837 |
-c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv422p10le -profile:v hq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_htj2k-htj2k_qs0.0015 |
Test frame= 1 fps=0.4 q=0.0 Lsize= 1KiB time=00:00:00.04 bitrate= 111.2kbits/s speed=0.0156x elapsed=0:00:02.56 |
17.3448 |
1,751,893,041 |
100.0 |
65.749862 |
0.0 |
0.999973 |
-jph:qstep 0.0015 |
| test_intra_htj2k-htj2k_qs0.003 |
Test frame= 1 fps=0.2 q=0.0 Lsize= 16KiB time=00:00:00.04 bitrate=3288.6kbits/s speed=0.00734x elapsed=0:00:05.44 |
15.2318 |
1,030,656,478 |
100.0 |
58.9233 |
0.0 |
0.999865 |
-jph:qstep 0.003 |
| Test Name |
Test Results |
Encode Duration |
File Size |
VMAF Harmonic Mean |
PSNR-Y Harmonic Mean |
CAMBI Harmonic Mean |
MS-SSIM Harmonic Mean |
Encode Arguments |
| test_intra4k_mov-dnxhd_hqx |
Test frame= 1 fps=0.2 q=0.0 Lsize= 450KiB time=00:00:00.04 bitrate=92123.6kbits/s speed=0.00802x elapsed=0:00:04.98 |
8.0476 |
777,422,371 |
100.0 |
57.408107 |
0.0 |
0.999819 |
-c:v dnxhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv422p10le -profile:v dnxhr_hqx -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra4k_mov-oapv_422p10le_422HQ |
Test frame= 1 fps=0.2 q=0.0 Lsize= 2793KiB time=00:00:00.04 bitrate=572101.6kbits/s speed=0.00624x elapsed=0:00:06.40 |
1.891 |
194,503,065 |
99.99628 |
47.789988 |
0.0 |
0.997372 |
-c:v liboapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -oapv-params profile=422-10:family=422-HQ -pix_fmt yuv422p10le -preset fast -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra4k_mov-oapv_422p10le_qp15 |
Test frame= 1 fps=0.2 q=0.0 Lsize= 530KiB time=00:00:00.04 bitrate=108594.6kbits/s speed=0.00766x elapsed=0:00:05.22 |
3.6985 |
809,127,793 |
100.0 |
59.410116 |
0.0 |
0.999868 |
-c:v liboapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv422p10le -preset fast -qp 15 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra4k_mov-prores_hq |
Test frame= 1 fps=0.2 q=0.0 Lsize= 706KiB time=00:00:00.04 bitrate=144497.2kbits/s speed=0.00758x elapsed=0:00:05.28 |
12.1979 |
825,035,838 |
100.0 |
56.653113 |
0.0 |
0.999774 |
-c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv422p10le -profile:v hq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra4k_mov-prores_videotoolbox_yuv422p10le_hq |
Test frame= 1 fps=0.2 q=0.0 Lsize= 282KiB time=00:00:00.04 bitrate=57847.8kbits/s speed=0.00855x elapsed=0:00:04.67 |
2.4191 |
797,217,231 |
100.0 |
58.48398 |
0.0 |
0.999836 |
-c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv422p10le -profile:v hq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_htj2k-htj2k_qs0.0015 |
Test frame= 1 fps=0.4 q=0.0 Lsize= 0KiB time=00:00:00.04 bitrate= 98.0kbits/s speed=0.0149x elapsed=0:00:02.68 |
16.3728 |
1,495,434,989 |
100.0 |
65.666525 |
0.0 |
0.999974 |
-jph:qstep 0.0015 |
| test_intra_htj2k-htj2k_qs0.003 |
Test frame= 1 fps=0.2 q=0.0 Lsize= 12KiB time=00:00:00.04 bitrate=2442.2kbits/s speed=0.00707x elapsed=0:00:05.65 |
14.637 |
854,196,274 |
100.0 |
59.00143 |
0.0 |
0.999874 |
-jph:qstep 0.003 |
| Test Name |
Test Results |
Encode Duration |
File Size |
VMAF Harmonic Mean |
PSNR-Y Harmonic Mean |
CAMBI Harmonic Mean |
MS-SSIM Harmonic Mean |
Encode Arguments |
| test_intra4k_mov-dnxhd_hqx |
Test frame= 1 fps=0.1 q=0.0 Lsize= 3244KiB time=00:00:00.04 bitrate=664465.4kbits/s speed=0.00408x elapsed=0:00:09.80 |
7.8874 |
777,422,387 |
99.998914 |
53.147949 |
0.0 |
0.999634 |
-c:v dnxhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv422p10le -profile:v dnxhr_hqx -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra4k_mov-oapv_422p10le_422HQ |
Test frame= 1 fps=0.1 q=0.0 Lsize= 5159KiB time=00:00:00.04 bitrate=1056539.4kbits/s speed=0.00544x elapsed=0:00:07.35 |
2.14 |
257,798,038 |
99.994068 |
45.44495 |
0.0 |
0.996595 |
-c:v liboapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -oapv-params profile=422-10:family=422-HQ -pix_fmt yuv422p10le -preset fast -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra4k_mov-oapv_422p10le_qp15 |
Test frame= 1 fps=0.1 q=0.0 Lsize= 1773KiB time=00:00:00.04 bitrate=363162.2kbits/s speed=0.00496x elapsed=0:00:08.05 |
4.1463 |
1,091,360,113 |
100.0 |
59.21078 |
0.0 |
0.999891 |
-c:v liboapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv422p10le -preset fast -qp 15 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra4k_mov-prores_hq |
Test frame= 1 fps=0.1 q=0.0 Lsize= 2945KiB time=00:00:00.04 bitrate=603205.4kbits/s speed=0.00495x elapsed=0:00:08.07 |
13.6857 |
825,660,331 |
100.0 |
52.821623 |
0.0 |
0.999565 |
-c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv422p10le -profile:v hq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra4k_mov-prores_videotoolbox_yuv422p10le_hq |
Test frame= 1 fps=0.1 q=0.0 Lsize= 2978KiB time=00:00:00.04 bitrate=609844.0kbits/s speed=0.00455x elapsed=0:00:08.79 |
2.3223 |
797,899,967 |
100.0 |
53.975623 |
0.0 |
0.999658 |
-c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv422p10le -profile:v hq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_htj2k-htj2k_qs0.0015 |
Test frame= 1 fps=0.4 q=0.0 Lsize= 0KiB time=00:00:00.04 bitrate= 86.0kbits/s speed=0.0148x elapsed=0:00:02.71 |
18.0662 |
2,111,987,261 |
100.0 |
66.506091 |
0.0 |
0.999983 |
-jph:qstep 0.0015 |
| test_intra_htj2k-htj2k_qs0.003 |
Test frame= 1 fps=0.2 q=0.0 Lsize= 12KiB time=00:00:00.04 bitrate=2484.0kbits/s speed=0.00748x elapsed=0:00:05.34 |
16.6903 |
1,338,784,090 |
100.0 |
59.437079 |
0.0 |
0.999916 |
-jph:qstep 0.003 |
Visual Compare
Testing with ffmpeg version: git-2025-07-22-1ce20f55cc on OS:Darwin 24.5.0 Architecture: arm.
