Comparing different codecs for intra frame encoding only, so no compression from frame to frame, ideal if you need to quickly seek to a frame for fast playback.
| Test Name |
Test Results |

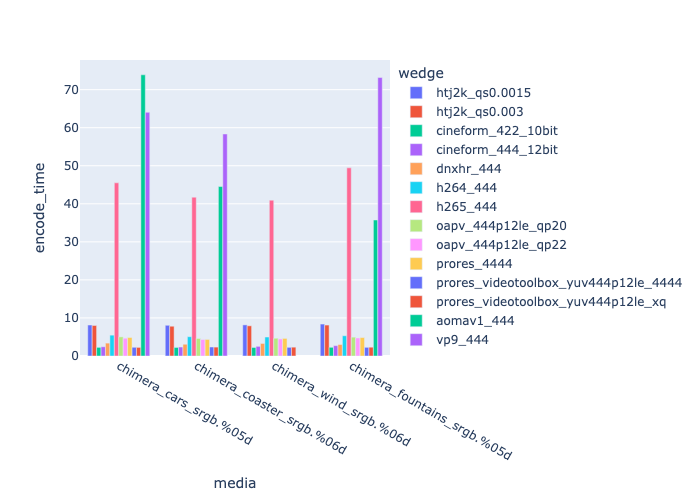

Encode Duration |

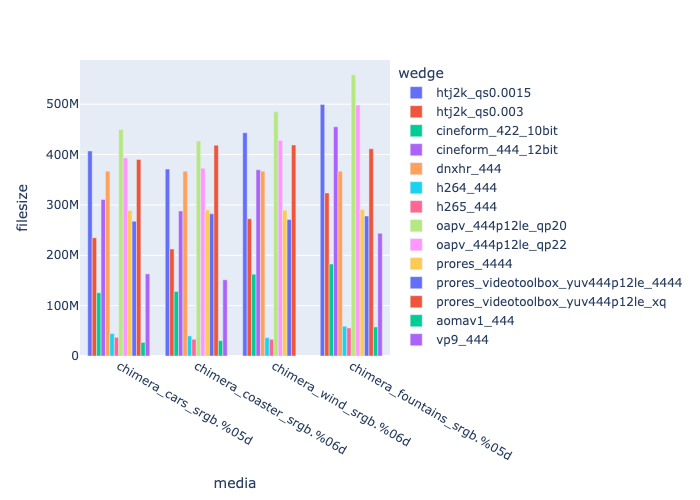

File Size |

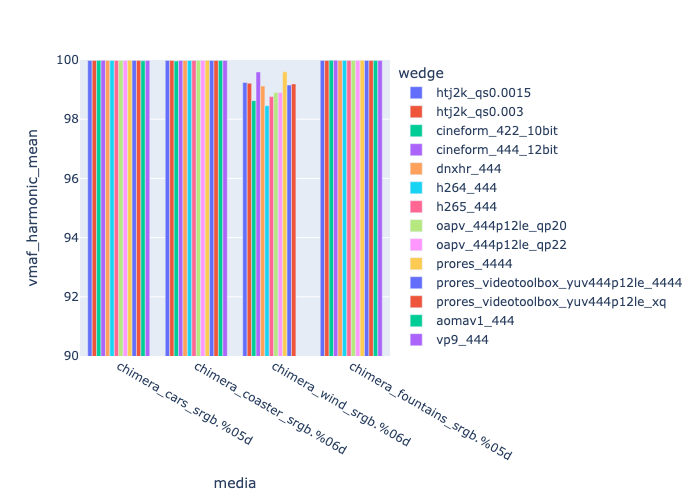

VMAF Harmonic Mean |

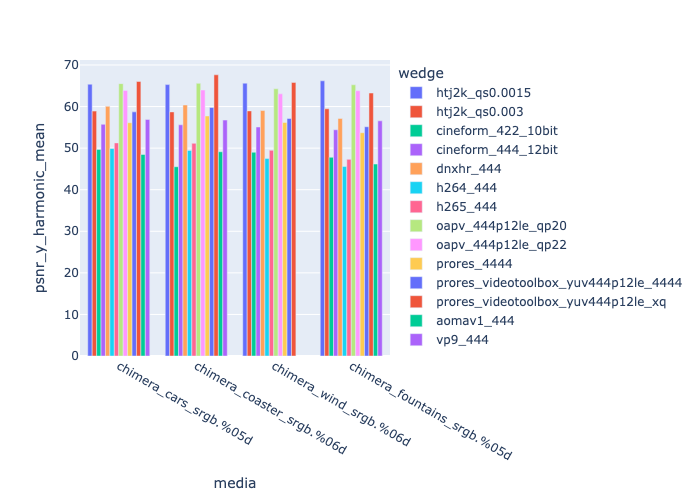

PSNR-Y Harmonic Mean |
CAMBI Harmonic Mean |
MS-SSIM Harmonic Mean |
Encode Arguments |
| test_intra_mov-cineform_422_10bit |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0718x elapsed=0:00:00.55 |
2.275 |
125,648,865 |
99.983622 |
49.693943 |
1e-06 |
0.999166 |
-c:v cfhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv422p10le -quality 5 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-cineform_444_12bit |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0548x elapsed=0:00:00.72 |
2.4233 |
310,927,285 |
99.987537 |
55.733298 |
1e-06 |
0.999754 |
-c:v cfhd -color_primaries bt709 -color_range pc -color_trc iec61966-2-1 -colorspace rgb -pix_fmt gbrp12le -quality 5 |
| test_intra_mov-dnxhr_444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0739x elapsed=0:00:00.54 |
3.3866 |
367,003,187 |
99.985938 |
60.060344 |
1e-06 |
0.999919 |
-c:v dnxhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p10le -profile:v dnxhr_444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-h264_444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.075x elapsed=0:00:00.53 |
5.4796 |
44,505,876 |
99.983391 |
49.912112 |
1e-06 |
0.999117 |
-c:v libx264 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 12 -g 1 -pix_fmt yuv444p10le -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-h265_444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.077x elapsed=0:00:00.51 |
45.5151 |
37,176,578 |
99.985907 |
51.256388 |
1e-06 |
0.999209 |
-c:v libx265 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 12 -g 1 -pix_fmt yuv444p10le -preset slow -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" -x265-params keyint=1:min-keyint=1 |
| test_intra_mov-oapv_444p12le_qp20 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0671x elapsed=0:00:00.59 |
5.0218 |
449,654,417 |
99.98546 |
65.517383 |
1e-06 |
0.99997 |
-c:v liboapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -oapv-params profile=444-12 -pix_fmt yuv444p12le -qp 20 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-oapv_444p12le_qp22 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0701x elapsed=0:00:00.57 |
4.6766 |
393,345,694 |
99.985399 |
63.890021 |
1e-06 |
0.999956 |
-c:v liboapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -oapv-params profile=444-12 -pix_fmt yuv444p12le -qp 22 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-prores_4444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0701x elapsed=0:00:00.57 |
4.8647 |
289,087,212 |
99.989597 |
56.11481 |
1e-06 |
0.999812 |
-c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p10le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-prores_videotoolbox_yuv444p12le_4444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0767x elapsed=0:00:00.52 |
2.2924 |
267,632,799 |
99.986435 |
58.726366 |
1e-06 |
0.999858 |
-c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-prores_videotoolbox_yuv444p12le_xq |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0717x elapsed=0:00:00.55 |
2.2656 |
390,144,943 |
99.986524 |
66.041504 |
1e-06 |
0.999976 |
-c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v xq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_htj2k-htj2k_qs0.0015 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0626x elapsed=0:00:00.63 |
8.1424 |
407,155,573 |
99.986649 |
65.379623 |
1e-06 |
0.999971 |
-jph:qstep 0.0015 |
| test_intra_htj2k-htj2k_qs0.003 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0677x elapsed=0:00:00.59 |
8.0231 |
234,706,884 |
99.986416 |
58.910322 |
1e-06 |
0.999865 |
-jph:qstep 0.003 |
| test_intra_mp4-aomav1_444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.066x elapsed=0:00:00.60 |
73.9065 |
27,042,600 |
99.973199 |
48.477059 |
1e-06 |
0.998281 |
-c:v libaom-av1 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -cpu-used 6 -crf 12 -pix_fmt yuv444p10le -row-mt 1 -sws_flags spline+accurate_rnd+full_chroma_int -usage allintra -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mp4-vp9_444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0596x elapsed=0:00:00.67 |
64.0489 |
163,006,814 |
99.986584 |
56.907798 |
1e-06 |
0.999766 |
-b:v 0 -c:v libvpx-vp9 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 10 -g 1 -pix_fmt yuv444p10le -quality good -row-mt 1 -speed 2 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| Test Name |
Test Results |
Encode Duration |
File Size |
VMAF Harmonic Mean |
PSNR-Y Harmonic Mean |
CAMBI Harmonic Mean |
MS-SSIM Harmonic Mean |
Encode Arguments |
| test_intra_mov-cineform_422_10bit |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0789x elapsed=0:00:00.50 |
2.2521 |
128,263,945 |
99.964952 |
45.529687 |
0.0 |
0.998513 |
-c:v cfhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv422p10le -quality 5 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-cineform_444_12bit |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0573x elapsed=0:00:00.69 |
2.3584 |
288,101,269 |
99.987217 |
55.614236 |
0.0 |
0.999755 |
-c:v cfhd -color_primaries bt709 -color_range pc -color_trc iec61966-2-1 -colorspace rgb -pix_fmt gbrp12le -quality 5 |
| test_intra_mov-dnxhr_444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0717x elapsed=0:00:00.55 |
3.0871 |
367,003,187 |
99.986301 |
60.380469 |
0.0 |
0.999933 |
-c:v dnxhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p10le -profile:v dnxhr_444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-h264_444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0748x elapsed=0:00:00.53 |
5.0688 |
39,927,683 |
99.985342 |
49.461706 |
0.0 |
0.99888 |
-c:v libx264 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 12 -g 1 -pix_fmt yuv444p10le -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-h265_444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.077x elapsed=0:00:00.51 |
41.7458 |
33,143,509 |
99.986199 |
51.155187 |
0.0 |
0.999068 |
-c:v libx265 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 12 -g 1 -pix_fmt yuv444p10le -preset slow -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" -x265-params keyint=1:min-keyint=1 |
| test_intra_mov-oapv_444p12le_qp20 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0665x elapsed=0:00:00.60 |
4.6144 |
426,830,882 |
99.98566 |
65.593202 |
0.0 |
0.999973 |
-c:v liboapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -oapv-params profile=444-12 -pix_fmt yuv444p12le -qp 20 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-oapv_444p12le_qp22 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.07x elapsed=0:00:00.57 |
4.326 |
372,951,929 |
99.985625 |
63.974764 |
0.0 |
0.99996 |
-c:v liboapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -oapv-params profile=444-12 -pix_fmt yuv444p12le -qp 22 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-prores_4444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0708x elapsed=0:00:00.56 |
4.3563 |
289,797,908 |
99.989311 |
57.732578 |
0.0 |
0.99986 |
-c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p10le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-prores_videotoolbox_yuv444p12le_4444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.075x elapsed=0:00:00.53 |
2.365 |
282,368,527 |
99.986598 |
59.770566 |
0.0 |
0.999897 |
-c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-prores_videotoolbox_yuv444p12le_xq |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0676x elapsed=0:00:00.59 |
2.3428 |
418,622,575 |
99.986916 |
67.641117 |
0.0 |
0.999985 |
-c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v xq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_htj2k-htj2k_qs0.0015 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0607x elapsed=0:00:00.65 |
8.0751 |
371,059,563 |
99.986674 |
65.283257 |
0.0 |
0.999974 |
-jph:qstep 0.0015 |
| test_intra_htj2k-htj2k_qs0.003 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0712x elapsed=0:00:00.56 |
7.8264 |
212,580,566 |
99.9864 |
58.713822 |
0.0 |
0.999877 |
-jph:qstep 0.003 |
| test_intra_mp4-aomav1_444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0701x elapsed=0:00:00.57 |
44.5416 |
30,527,114 |
99.979728 |
49.132341 |
0.0 |
0.998318 |
-c:v libaom-av1 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -cpu-used 6 -crf 12 -pix_fmt yuv444p10le -row-mt 1 -sws_flags spline+accurate_rnd+full_chroma_int -usage allintra -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mp4-vp9_444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0641x elapsed=0:00:00.62 |
58.3505 |
151,273,763 |
99.986765 |
56.748118 |
0.0 |
0.999774 |
-b:v 0 -c:v libvpx-vp9 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 10 -g 1 -pix_fmt yuv444p10le -quality good -row-mt 1 -speed 2 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| Test Name |
Test Results |
Encode Duration |
File Size |
VMAF Harmonic Mean |
PSNR-Y Harmonic Mean |
CAMBI Harmonic Mean |
MS-SSIM Harmonic Mean |
Encode Arguments |
| test_intra_mov-cineform_422_10bit |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0724x elapsed=0:00:00.55 |
2.2878 |
182,673,497 |
99.98813 |
47.797531 |
0.0 |
0.999138 |
-c:v cfhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv422p10le -quality 5 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-cineform_444_12bit |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0487x elapsed=0:00:00.82 |
2.7214 |
455,005,745 |
99.987546 |
54.413504 |
0.0 |
0.999786 |
-c:v cfhd -color_primaries bt709 -color_range pc -color_trc iec61966-2-1 -colorspace rgb -pix_fmt gbrp12le -quality 5 |
| test_intra_mov-dnxhr_444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0783x elapsed=0:00:00.51 |
3.0093 |
367,003,187 |
99.985056 |
57.15755 |
0.0 |
0.9999 |
-c:v dnxhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p10le -profile:v dnxhr_444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-h264_444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0777x elapsed=0:00:00.51 |
5.3159 |
59,091,427 |
99.985201 |
45.567919 |
0.0 |
0.998009 |
-c:v libx264 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 12 -g 1 -pix_fmt yuv444p10le -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-h265_444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0755x elapsed=0:00:00.52 |
49.4481 |
55,733,047 |
99.985989 |
47.297791 |
0.0 |
0.998467 |
-c:v libx265 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 12 -g 1 -pix_fmt yuv444p10le -preset slow -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" -x265-params keyint=1:min-keyint=1 |
| test_intra_mov-oapv_444p12le_qp20 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0654x elapsed=0:00:00.61 |
4.9593 |
558,342,641 |
99.985502 |
65.23805 |
0.0 |
0.999978 |
-c:v liboapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -oapv-params profile=444-12 -pix_fmt yuv444p12le -qp 20 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-oapv_444p12le_qp22 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0691x elapsed=0:00:00.57 |
4.7361 |
498,463,643 |
99.985486 |
63.799769 |
0.0 |
0.999969 |
-c:v liboapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -oapv-params profile=444-12 -pix_fmt yuv444p12le -qp 22 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-prores_4444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0756x elapsed=0:00:00.52 |
4.8494 |
290,898,134 |
99.990968 |
53.706333 |
0.0 |
0.99972 |
-c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p10le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-prores_videotoolbox_yuv444p12le_4444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0811x elapsed=0:00:00.49 |
2.2804 |
277,985,119 |
99.985458 |
55.147612 |
0.0 |
0.999783 |
-c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-prores_videotoolbox_yuv444p12le_xq |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0713x elapsed=0:00:00.56 |
2.314 |
411,404,079 |
99.986852 |
63.254808 |
0.0 |
0.99997 |
-c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v xq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_htj2k-htj2k_qs0.0015 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0597x elapsed=0:00:00.67 |
8.3975 |
499,245,134 |
99.986746 |
66.187912 |
0.0 |
0.999985 |
-jph:qstep 0.0015 |
| test_intra_htj2k-htj2k_qs0.003 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0624x elapsed=0:00:00.64 |
8.1344 |
323,750,500 |
99.986506 |
59.459896 |
0.0 |
0.99993 |
-jph:qstep 0.003 |
| test_intra_mp4-aomav1_444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0721x elapsed=0:00:00.55 |
35.744 |
57,691,005 |
99.97942 |
46.171078 |
0.0 |
0.997725 |
-c:v libaom-av1 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -cpu-used 6 -crf 12 -pix_fmt yuv444p10le -row-mt 1 -sws_flags spline+accurate_rnd+full_chroma_int -usage allintra -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mp4-vp9_444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0562x elapsed=0:00:00.71 |
73.1823 |
243,749,128 |
99.987034 |
56.567882 |
0.0 |
0.999837 |
-b:v 0 -c:v libvpx-vp9 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 10 -g 1 -pix_fmt yuv444p10le -quality good -row-mt 1 -speed 2 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| Test Name |
Test Results |
Encode Duration |
File Size |
VMAF Harmonic Mean |
PSNR-Y Harmonic Mean |
CAMBI Harmonic Mean |
MS-SSIM Harmonic Mean |
Encode Arguments |
| test_intra_mov-cineform_422_10bit |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0723x elapsed=0:00:00.55 |
2.2418 |
162,433,901 |
98.626611 |
49.008922 |
0.0 |
0.999406 |
-c:v cfhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv422p10le -quality 5 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-cineform_444_12bit |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0526x elapsed=0:00:00.76 |
2.5411 |
369,700,153 |
99.59591 |
55.083378 |
0.0 |
0.99983 |
-c:v cfhd -color_primaries bt709 -color_range pc -color_trc iec61966-2-1 -colorspace rgb -pix_fmt gbrp12le -quality 5 |
| test_intra_mov-dnxhr_444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0766x elapsed=0:00:00.52 |
3.3006 |
367,003,187 |
99.120005 |
59.042867 |
0.0 |
0.999937 |
-c:v dnxhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p10le -profile:v dnxhr_444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-h264_444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0792x elapsed=0:00:00.50 |
4.9893 |
36,534,381 |
98.453981 |
47.491468 |
0.0 |
0.999037 |
-c:v libx264 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 12 -g 1 -pix_fmt yuv444p10le -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-h265_444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0758x elapsed=0:00:00.52 |
40.9591 |
33,130,726 |
98.766361 |
49.469238 |
0.0 |
0.999225 |
-c:v libx265 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 12 -g 1 -pix_fmt yuv444p10le -preset slow -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" -x265-params keyint=1:min-keyint=1 |
| test_intra_mov-oapv_444p12le_qp20 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0658x elapsed=0:00:00.60 |
4.671 |
484,822,082 |
98.903665 |
64.270415 |
0.0 |
0.999978 |
-c:v liboapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -oapv-params profile=444-12 -pix_fmt yuv444p12le -qp 20 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-oapv_444p12le_qp22 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0701x elapsed=0:00:00.57 |
4.4873 |
427,715,432 |
98.899571 |
63.054482 |
0.0 |
0.99997 |
-c:v liboapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -oapv-params profile=444-12 -pix_fmt yuv444p12le -qp 22 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-prores_4444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0741x elapsed=0:00:00.53 |
4.6253 |
289,484,418 |
99.599622 |
56.168555 |
0.0 |
0.999862 |
-c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p10le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-prores_videotoolbox_yuv444p12le_4444 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0815x elapsed=0:00:00.49 |
2.2821 |
270,919,503 |
99.153897 |
57.141886 |
0.0 |
0.999874 |
-c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-prores_videotoolbox_yuv444p12le_xq |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0719x elapsed=0:00:00.55 |
2.3245 |
419,008,079 |
99.192638 |
65.809949 |
0.0 |
0.999985 |
-c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v xq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_htj2k-htj2k_qs0.0015 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.064x elapsed=0:00:00.62 |
8.1735 |
443,314,979 |
99.237989 |
65.62721 |
0.0 |
0.999983 |
-jph:qstep 0.0015 |
| test_intra_htj2k-htj2k_qs0.003 |
Test frame= 1 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.04 bitrate=N/A speed=0.0674x elapsed=0:00:00.59 |
7.933 |
272,642,624 |
99.214108 |
58.958305 |
0.0 |
0.999921 |
-jph:qstep 0.003 |
| Test Name |
PNG |
movie |
Encode Arguments |
| test_intra_mov-cineform_422_10bit |
 |
-c:v cfhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv422p10le -quality 5 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-cineform_444_12bit |
 |
-c:v cfhd -color_primaries bt709 -color_range pc -color_trc iec61966-2-1 -colorspace rgb -pix_fmt gbrp12le -quality 5 |
| test_intra_mov-dnxhr_444 |
 |
-c:v dnxhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p10le -profile:v dnxhr_444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-h264_444 |
 |
-c:v libx264 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 12 -g 1 -pix_fmt yuv444p10le -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-h265_444 |
 |
-c:v libx265 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 12 -g 1 -pix_fmt yuv444p10le -preset slow -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" -x265-params keyint=1:min-keyint=1 |
| test_intra_mov-oapv_444p12le_qp20 |
 |
-c:v liboapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -oapv-params profile=444-12 -pix_fmt yuv444p12le -qp 20 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-oapv_444p12le_qp22 |
 |
-c:v liboapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -oapv-params profile=444-12 -pix_fmt yuv444p12le -qp 22 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-prores_4444 |
 |
-c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p10le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-prores_videotoolbox_yuv444p12le_4444 |
 |
-c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-prores_videotoolbox_yuv444p12le_xq |
 |
-c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v xq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_htj2k-htj2k_qs0.0015 |
 |
-jph:qstep 0.0015 |
| test_intra_htj2k-htj2k_qs0.003 |
 |
-jph:qstep 0.003 |
| test_intra_mp4-aomav1_444 |
 |
-c:v libaom-av1 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -cpu-used 6 -crf 12 -pix_fmt yuv444p10le -row-mt 1 -sws_flags spline+accurate_rnd+full_chroma_int -usage allintra -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mp4-vp9_444 |
 |
-b:v 0 -c:v libvpx-vp9 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 10 -g 1 -pix_fmt yuv444p10le -quality good -row-mt 1 -speed 2 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| Test Name |
PNG |
movie |
Encode Arguments |
| test_intra_mov-cineform_422_10bit |
 |
-c:v cfhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv422p10le -quality 5 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-cineform_444_12bit |
 |
-c:v cfhd -color_primaries bt709 -color_range pc -color_trc iec61966-2-1 -colorspace rgb -pix_fmt gbrp12le -quality 5 |
| test_intra_mov-dnxhr_444 |
 |
-c:v dnxhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p10le -profile:v dnxhr_444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-h264_444 |
 |
-c:v libx264 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 12 -g 1 -pix_fmt yuv444p10le -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-h265_444 |
 |
-c:v libx265 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 12 -g 1 -pix_fmt yuv444p10le -preset slow -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" -x265-params keyint=1:min-keyint=1 |
| test_intra_mov-oapv_444p12le_qp20 |
 |
-c:v liboapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -oapv-params profile=444-12 -pix_fmt yuv444p12le -qp 20 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-oapv_444p12le_qp22 |
 |
-c:v liboapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -oapv-params profile=444-12 -pix_fmt yuv444p12le -qp 22 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-prores_4444 |
 |
-c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p10le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-prores_videotoolbox_yuv444p12le_4444 |
 |
-c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-prores_videotoolbox_yuv444p12le_xq |
 |
-c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v xq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_htj2k-htj2k_qs0.0015 |
 |
-jph:qstep 0.0015 |
| test_intra_htj2k-htj2k_qs0.003 |
 |
-jph:qstep 0.003 |
| test_intra_mp4-aomav1_444 |
 |
-c:v libaom-av1 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -cpu-used 6 -crf 12 -pix_fmt yuv444p10le -row-mt 1 -sws_flags spline+accurate_rnd+full_chroma_int -usage allintra -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mp4-vp9_444 |
 |
-b:v 0 -c:v libvpx-vp9 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 10 -g 1 -pix_fmt yuv444p10le -quality good -row-mt 1 -speed 2 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| Test Name |
PNG |
movie |
Encode Arguments |
| test_intra_mov-cineform_422_10bit |
 |
-c:v cfhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv422p10le -quality 5 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-cineform_444_12bit |
 |
-c:v cfhd -color_primaries bt709 -color_range pc -color_trc iec61966-2-1 -colorspace rgb -pix_fmt gbrp12le -quality 5 |
| test_intra_mov-dnxhr_444 |
 |
-c:v dnxhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p10le -profile:v dnxhr_444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-h264_444 |
 |
-c:v libx264 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 12 -g 1 -pix_fmt yuv444p10le -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-h265_444 |
 |
-c:v libx265 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 12 -g 1 -pix_fmt yuv444p10le -preset slow -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" -x265-params keyint=1:min-keyint=1 |
| test_intra_mov-oapv_444p12le_qp20 |
 |
-c:v liboapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -oapv-params profile=444-12 -pix_fmt yuv444p12le -qp 20 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-oapv_444p12le_qp22 |
 |
-c:v liboapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -oapv-params profile=444-12 -pix_fmt yuv444p12le -qp 22 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-prores_4444 |
 |
-c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p10le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-prores_videotoolbox_yuv444p12le_4444 |
 |
-c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-prores_videotoolbox_yuv444p12le_xq |
 |
-c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v xq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_htj2k-htj2k_qs0.0015 |
 |
-jph:qstep 0.0015 |
| test_intra_htj2k-htj2k_qs0.003 |
 |
-jph:qstep 0.003 |
| test_intra_mp4-aomav1_444 |
 |
-c:v libaom-av1 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -cpu-used 6 -crf 12 -pix_fmt yuv444p10le -row-mt 1 -sws_flags spline+accurate_rnd+full_chroma_int -usage allintra -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mp4-vp9_444 |
 |
-b:v 0 -c:v libvpx-vp9 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 10 -g 1 -pix_fmt yuv444p10le -quality good -row-mt 1 -speed 2 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| Test Name |
PNG |
movie |
Encode Arguments |
| test_intra_mov-cineform_422_10bit |
 |
-c:v cfhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv422p10le -quality 5 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-cineform_444_12bit |
 |
-c:v cfhd -color_primaries bt709 -color_range pc -color_trc iec61966-2-1 -colorspace rgb -pix_fmt gbrp12le -quality 5 |
| test_intra_mov-dnxhr_444 |
 |
-c:v dnxhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p10le -profile:v dnxhr_444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-h264_444 |
 |
-c:v libx264 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 12 -g 1 -pix_fmt yuv444p10le -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-h265_444 |
 |
-c:v libx265 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 12 -g 1 -pix_fmt yuv444p10le -preset slow -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" -x265-params keyint=1:min-keyint=1 |
| test_intra_mov-oapv_444p12le_qp20 |
 |
-c:v liboapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -oapv-params profile=444-12 -pix_fmt yuv444p12le -qp 20 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-oapv_444p12le_qp22 |
 |
-c:v liboapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -oapv-params profile=444-12 -pix_fmt yuv444p12le -qp 22 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-prores_4444 |
 |
-c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p10le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-prores_videotoolbox_yuv444p12le_4444 |
 |
-c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_mov-prores_videotoolbox_yuv444p12le_xq |
 |
-c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v xq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709" |
| test_intra_htj2k-htj2k_qs0.0015 |
 |
-jph:qstep 0.0015 |
| test_intra_htj2k-htj2k_qs0.003 |
 |
-jph:qstep 0.003 |
Visual Compare
Testing with ffmpeg version: git-2025-07-22-1ce20f55cc on OS:Darwin 24.5.0 Architecture: arm.
