Open Review Initiative ORI Encoding Guidelines Test Indexes

Codecs 10-bit yuv444

This is comparing different codecs, with approximately the same tuning factors such that vmaf > 98.. testing oapv, h264, vp9, av1, prores


Visual Compare
Testing with ffmpeg version: git-2025-07-22-1ce20f55cc on OS:Darwin 24.5.0 Architecture: arm.

chimera_cars_srgb.%05d Results

File Pathchimera_cars_srgb.%05d.dpx
Resolution1920 x 1080
Source Frame Rate25.0
Frame Range2500 - 2700

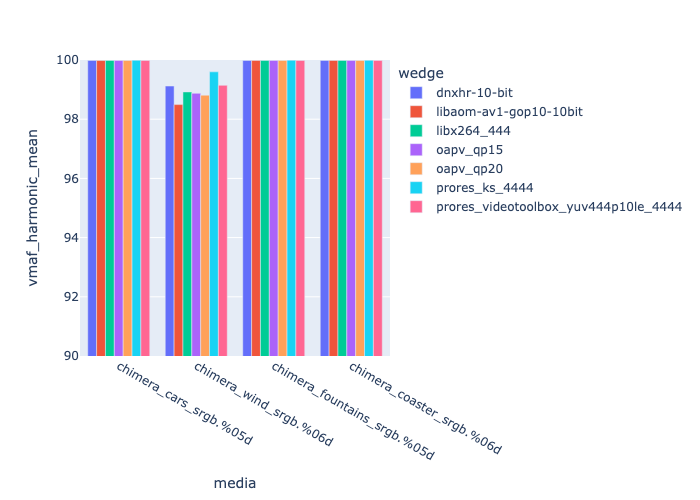

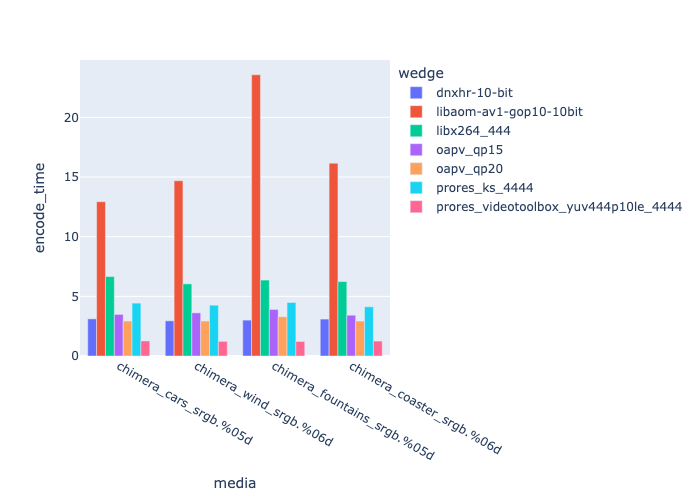

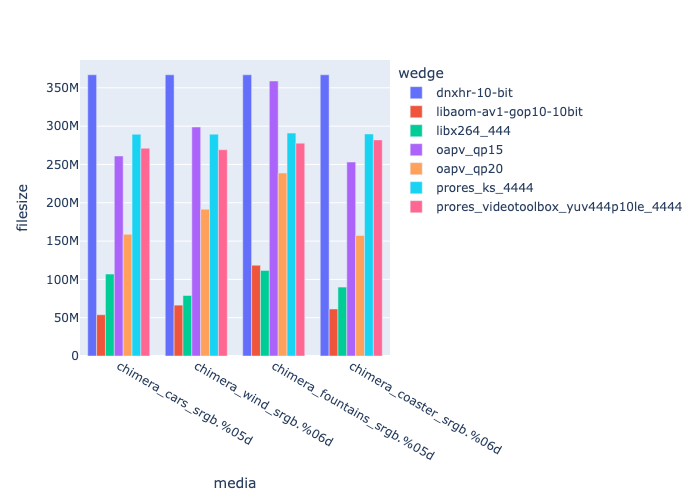

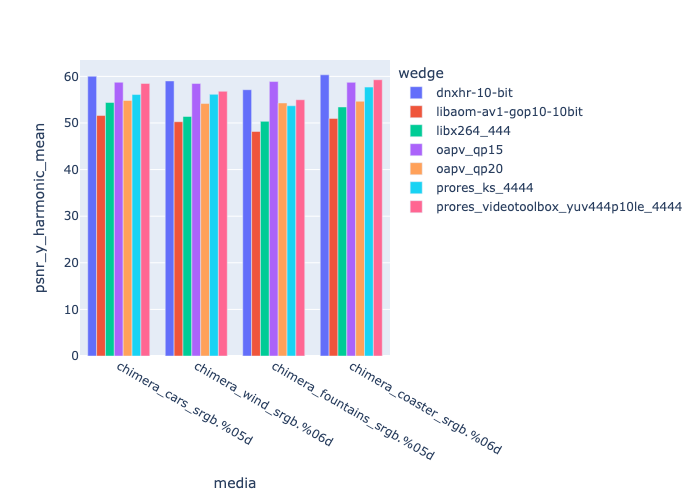

Test Name Test Results Encode Duration File Size VMAF Harmonic Mean PSNR-Y Harmonic Mean CAMBI Harmonic Mean MS-SSIM Harmonic Mean Encode Arguments
test_mkv-dnxhr-10-bit Test frame= 1 fps=0.9 q=0.0 Lsize= 2KiB time=00:00:00.04 bitrate= 506.8kbits/s speed=0.0359x elapsed=0:00:01.11 3.1123 367,011,215 99.985948 60.024493 1e-06 0.999918 -c:v dnxhd -color_primaries 1 -color_range 1 -color_trc 2 -colorspace 1 -pix_fmt yuv444p10le -profile:v dnxhr_444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_mkv-libaom-av1-gop10-10bit Test frame= 1 fps=0.4 q=0.0 Lsize= 136KiB time=00:00:00.04 bitrate=27866.6kbits/s speed=0.0162x elapsed=0:00:02.46 12.9268 53,845,165 99.981806 51.598469 1e-06 0.999118 -arnr-max-frames 4 -arnr-strength 1 -c:v libaom-av1 -color_primaries 1 -color_range 1 -color_trc 2 -colorspace 1 -cpu-used 3 -crf 10 -g 10 -pix_fmt yuv444p10le -row-mt 1 -sws_flags spline+accurate_rnd+full_chroma_int -usage realtime -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_mkv-libx264_444 Test frame= 1 fps=0.5 q=0.0 Lsize= 105KiB time=00:00:00.04 bitrate=21408.8kbits/s speed=0.0205x elapsed=0:00:01.95 6.6546 106,957,080 99.986277 54.403717 1e-06 0.999702 -c:v libx264 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 6 -g 1 -pix_fmt yuv444p10le -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_mkv-oapv_qp15 Test frame= 1 fps=0.7 q=0.0 Lsize= 2KiB time=00:00:00.04 bitrate= 419.2kbits/s speed=0.0293x elapsed=0:00:01.36 3.4842 261,003,103 99.985162 58.734555 1e-06 0.999852 -c:v liboapv -color_primaries bt709 -color_range tv -colorspace bt709 -oapv-params profile=444-10 -pix_fmt yuv444p10le -qp 15 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_mkv-oapv_qp20 Test frame= 1 fps=0.4 q=0.0 Lsize= 325KiB time=00:00:00.04 bitrate=66480.2kbits/s speed=0.0156x elapsed=0:00:02.56 2.9314 158,749,218 99.984504 54.838102 1e-06 0.999637 -c:v liboapv -color_primaries bt709 -color_range tv -colorspace bt709 -oapv-params profile=444-10 -pix_fmt yuv444p10le -qp 20 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_mkv-prores_ks_4444 Test frame= 1 fps=0.5 q=0.0 Lsize= 128KiB time=00:00:00.04 bitrate=26236.2kbits/s speed=0.0183x elapsed=0:00:02.18 4.4317 289,419,528 99.989686 56.099712 1e-06 0.999812 -c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p10le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_mkv-prores_videotoolbox_yuv444p10le_4444 Test frame= 1 fps=0.7 q=0.0 Lsize= 2KiB time=00:00:00.04 bitrate= 320.6kbits/s speed=0.0292x elapsed=0:00:01.36 1.2612 271,192,752 99.986425 58.490074 1e-06 0.999849 -c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p10le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"

chimera_coaster_srgb.%06d Results

File Pathchimera_coaster_srgb.%06d.dpx
Resolution1920 x 1080
Source Frame Rate25.0
Frame Range44200 - 44400
Test Name Test Results Encode Duration File Size VMAF Harmonic Mean PSNR-Y Harmonic Mean CAMBI Harmonic Mean MS-SSIM Harmonic Mean Encode Arguments
test_mkv-dnxhr-10-bit Test frame= 1 fps=0.0 q=0.0 Lsize= 2KiB time=00:00:00.04 bitrate= 360.2kbits/s speed=0.0451x elapsed=0:00:00.88 3.0934 367,011,215 99.986254 60.339314 0.0 0.999932 -c:v dnxhd -color_primaries 1 -color_range 1 -color_trc 2 -colorspace 1 -pix_fmt yuv444p10le -profile:v dnxhr_444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_mkv-libaom-av1-gop10-10bit Test frame= 1 fps=0.4 q=0.0 Lsize= 117KiB time=00:00:00.04 bitrate=23938.4kbits/s speed=0.0171x elapsed=0:00:02.33 16.1539 61,372,713 99.986628 50.982469 0.0 0.998646 -arnr-max-frames 4 -arnr-strength 1 -c:v libaom-av1 -color_primaries 1 -color_range 1 -color_trc 2 -colorspace 1 -cpu-used 3 -crf 10 -g 10 -pix_fmt yuv444p10le -row-mt 1 -sws_flags spline+accurate_rnd+full_chroma_int -usage realtime -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_mkv-libx264_444 Test frame= 1 fps=0.5 q=0.0 Lsize= 82KiB time=00:00:00.04 bitrate=16857.4kbits/s speed=0.02x elapsed=0:00:02.00 6.2361 89,965,675 99.986226 53.437766 0.0 0.999621 -c:v libx264 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 6 -g 1 -pix_fmt yuv444p10le -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_mkv-oapv_qp15 Test frame= 1 fps=0.8 q=0.0 Lsize= 1KiB time=00:00:00.04 bitrate= 266.8kbits/s speed=0.0306x elapsed=0:00:01.30 3.4173 253,143,857 99.985369 58.715339 0.0 0.999864 -c:v liboapv -color_primaries bt709 -color_range tv -colorspace bt709 -oapv-params profile=444-10 -pix_fmt yuv444p10le -qp 15 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_mkv-oapv_qp20 Test frame= 1 fps=0.4 q=0.0 Lsize= 281KiB time=00:00:00.04 bitrate=57594.2kbits/s speed=0.0162x elapsed=0:00:02.46 2.9298 157,417,331 99.984681 54.659509 0.0 0.999614 -c:v liboapv -color_primaries bt709 -color_range tv -colorspace bt709 -oapv-params profile=444-10 -pix_fmt yuv444p10le -qp 20 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_mkv-prores_ks_4444 Test frame= 1 fps=0.6 q=0.0 Lsize= 48KiB time=00:00:00.04 bitrate=9852.2kbits/s speed=0.0234x elapsed=0:00:01.70 4.1221 289,801,470 99.989268 57.700434 0.0 0.999859 -c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p10le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_mkv-prores_videotoolbox_yuv444p10le_4444 Test frame= 1 fps=0.9 q=0.0 Lsize= 0KiB time=00:00:00.04 bitrate= 87.8kbits/s speed=0.0376x elapsed=0:00:01.06 1.2514 282,041,697 99.986594 59.280305 0.0 0.999884 -c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p10le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"

chimera_fountains_srgb.%05d Results

File Pathchimera_fountains_srgb.%05d.dpx
Resolution1920 x 1080
Source Frame Rate25.0
Frame Range5400 - 5600
Test Name Test Results Encode Duration File Size VMAF Harmonic Mean PSNR-Y Harmonic Mean CAMBI Harmonic Mean MS-SSIM Harmonic Mean Encode Arguments
test_mkv-dnxhr-10-bit Test frame= 1 fps=0.5 q=0.0 Lsize= 66KiB time=00:00:00.04 bitrate=13563.2kbits/s speed=0.0188x elapsed=0:00:02.13 3.0064 367,011,215 99.98502 57.135724 0.0 0.9999 -c:v dnxhd -color_primaries 1 -color_range 1 -color_trc 2 -colorspace 1 -pix_fmt yuv444p10le -profile:v dnxhr_444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_mkv-libaom-av1-gop10-10bit Test frame= 1 fps=0.4 q=0.0 Lsize= 177KiB time=00:00:00.04 bitrate=36276.8kbits/s speed=0.0147x elapsed=0:00:02.72 23.5633 118,456,030 99.986993 48.169314 0.0 0.998251 -arnr-max-frames 4 -arnr-strength 1 -c:v libaom-av1 -color_primaries 1 -color_range 1 -color_trc 2 -colorspace 1 -cpu-used 3 -crf 10 -g 10 -pix_fmt yuv444p10le -row-mt 1 -sws_flags spline+accurate_rnd+full_chroma_int -usage realtime -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_mkv-libx264_444 Test frame= 1 fps=0.4 q=0.0 Lsize= 192KiB time=00:00:00.04 bitrate=39402.2kbits/s speed=0.0164x elapsed=0:00:02.43 6.3628 111,706,128 99.986453 50.348033 0.0 0.999428 -c:v libx264 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 6 -g 1 -pix_fmt yuv444p10le -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_mkv-oapv_qp15 Test frame= 1 fps=0.7 q=0.0 Lsize= 2KiB time=00:00:00.04 bitrate= 424.4kbits/s speed=0.0282x elapsed=0:00:01.41 3.8982 358,926,741 99.985194 58.886307 0.0 0.999906 -c:v liboapv -color_primaries bt709 -color_range tv -colorspace bt709 -oapv-params profile=444-10 -pix_fmt yuv444p10le -qp 15 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_mkv-oapv_qp20 Test frame= 1 fps=0.4 q=0.0 Lsize= 417KiB time=00:00:00.04 bitrate=85495.8kbits/s speed=0.0146x elapsed=0:00:02.73 3.2903 238,855,222 99.984711 54.294748 0.0 0.999723 -c:v liboapv -color_primaries bt709 -color_range tv -colorspace bt709 -oapv-params profile=444-10 -pix_fmt yuv444p10le -qp 20 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_mkv-prores_ks_4444 Test frame= 1 fps=0.4 q=0.0 Lsize= 314KiB time=00:00:00.04 bitrate=64317.4kbits/s speed=0.0141x elapsed=0:00:02.83 4.4823 290,903,286 99.99085 53.692837 0.0 0.999719 -c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p10le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_mkv-prores_videotoolbox_yuv444p10le_4444 Test frame= 1 fps=0.4 q=0.0 Lsize= 248KiB time=00:00:00.04 bitrate=50891.0kbits/s speed=0.0147x elapsed=0:00:02.71 1.2173 277,821,760 99.985403 54.984705 0.0 0.999773 -c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p10le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"

chimera_wind_srgb.%06d Results

File Pathchimera_wind_srgb.%06d.dpx
Resolution1920 x 1080
Source Frame Rate25.0
Frame Range66600 - 66800
Test Name Test Results Encode Duration File Size VMAF Harmonic Mean PSNR-Y Harmonic Mean CAMBI Harmonic Mean MS-SSIM Harmonic Mean Encode Arguments
test_mkv-dnxhr-10-bit Test frame= 1 fps=0.8 q=0.0 Lsize= 2KiB time=00:00:00.04 bitrate= 369.6kbits/s speed=0.0312x elapsed=0:00:01.28 2.9461 367,011,215 99.120331 59.01861 1e-06 0.999937 -c:v dnxhd -color_primaries 1 -color_range 1 -color_trc 2 -colorspace 1 -pix_fmt yuv444p10le -profile:v dnxhr_444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_mkv-libaom-av1-gop10-10bit Test frame= 1 fps=0.4 q=0.0 Lsize= 150KiB time=00:00:00.04 bitrate=30754.6kbits/s speed=0.016x elapsed=0:00:02.49 14.6863 66,397,174 98.492426 50.271483 1e-06 0.999139 -arnr-max-frames 4 -arnr-strength 1 -c:v libaom-av1 -color_primaries 1 -color_range 1 -color_trc 2 -colorspace 1 -cpu-used 3 -crf 10 -g 10 -pix_fmt yuv444p10le -row-mt 1 -sws_flags spline+accurate_rnd+full_chroma_int -usage realtime -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_mkv-libx264_444 Test frame= 1 fps=0.4 q=0.0 Lsize= 253KiB time=00:00:00.04 bitrate=51758.6kbits/s speed=0.0141x elapsed=0:00:02.83 6.0425 78,934,178 98.921254 51.393566 1e-06 0.99963 -c:v libx264 -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -crf 6 -g 1 -pix_fmt yuv444p10le -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_mkv-oapv_qp15 Test frame= 1 fps=0.6 q=0.0 Lsize= 6KiB time=00:00:00.04 bitrate=1271.6kbits/s speed=0.0225x elapsed=0:00:01.77 3.6149 298,846,060 98.874781 58.45912 1e-06 0.999909 -c:v liboapv -color_primaries bt709 -color_range tv -colorspace bt709 -oapv-params profile=444-10 -pix_fmt yuv444p10le -qp 15 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_mkv-oapv_qp20 Test frame= 1 fps=0.4 q=0.0 Lsize= 368KiB time=00:00:00.04 bitrate=75366.2kbits/s speed=0.0154x elapsed=0:00:02.60 2.9287 191,627,031 98.810505 54.168416 1e-06 0.999743 -c:v liboapv -color_primaries bt709 -color_range tv -colorspace bt709 -oapv-params profile=444-10 -pix_fmt yuv444p10le -qp 20 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_mkv-prores_ks_4444 Test frame= 1 fps=0.4 q=0.0 Lsize= 152KiB time=00:00:00.04 bitrate=31125.2kbits/s speed=0.0178x elapsed=0:00:02.24 4.2585 289,475,219 99.599797 56.1462 2e-06 0.999861 -c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p10le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_mkv-prores_videotoolbox_yuv444p10le_4444 Test frame= 1 fps=0.4 q=0.0 Lsize= 60KiB time=00:00:00.04 bitrate=12334.4kbits/s speed=0.0171x elapsed=0:00:02.33 1.227 269,161,008 99.144408 56.795867 2e-06 0.999863 -c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p10le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
