OSX Videotoolbox vs. oapv Comparison for 444p12

This is a comparison of different videotoolbox and oapv encodes for a 444p12 source, note prores_ks does not support 12-bit.

<
Testing with ffmpeg version: git-2025-05-09-0a1b790f29 on OS:Darwin 24.5.0 Architecture: arm.

chimera_cars_srgb.%05d Results

File Pathchimera_cars_srgb.%05d.dpx
Resolution1920 x 1080
Source Frame Rate25.0
Frame Range2500 - 2700

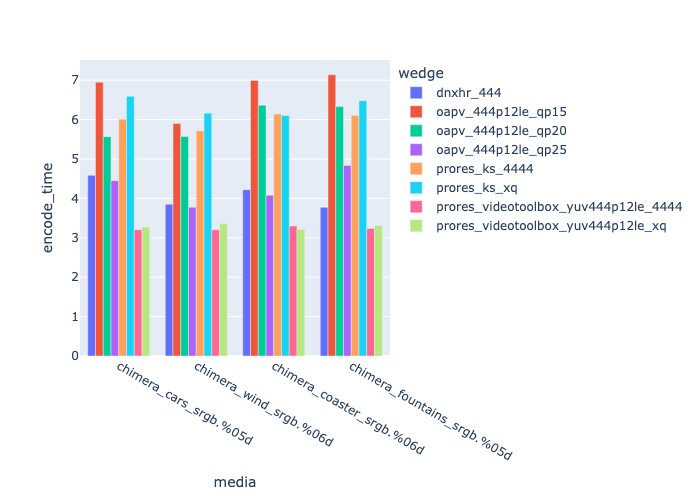

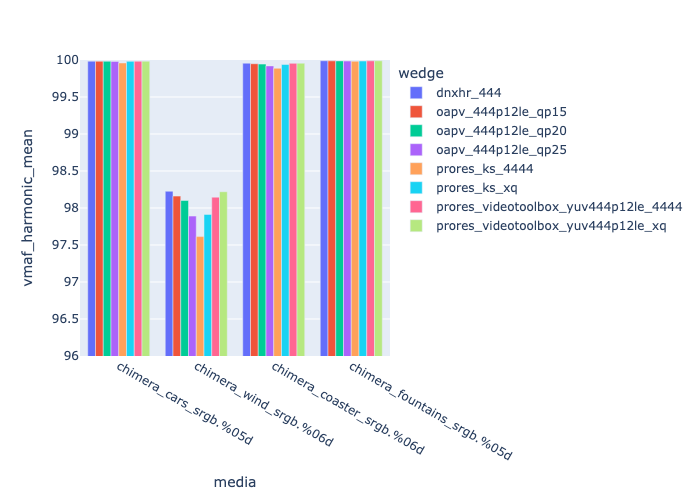

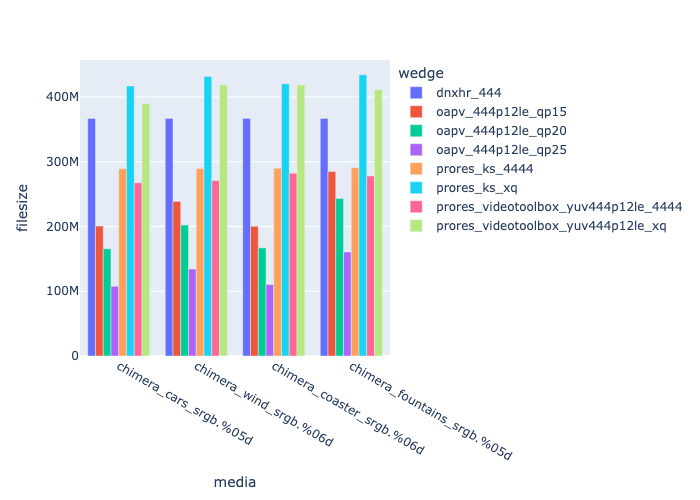

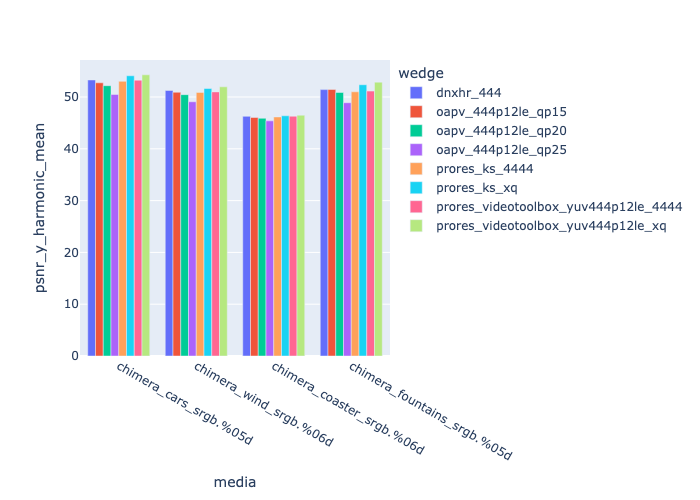

Test Name Test Results Encode Duration File Size VMAF Harmonic Mean PSNR-Y Harmonic Mean CAMBI Harmonic Mean MS-SSIM Harmonic Mean Encode Arguments
test_oapv422-dnxhr_444 Test Unable to run ffmpeg 4.5863 367,003,187 99.984057 53.28974 0.0 0.999716 -c:v dnxhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v dnxhr_444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-oapv_444p12le_qp15 Test Unable to run ffmpeg 6.9508 200,608,154 99.983225 52.745615 0.000118 0.999602 -c:v oapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -qp 18 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-oapv_444p12le_qp20 Test Unable to run ffmpeg 5.5681 165,671,554 99.982835 52.184302 0.029657 0.999522 -c:v oapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -qp 20 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-oapv_444p12le_qp25 Test Unable to run ffmpeg 4.4497 107,665,195 99.981157 50.490797 2.288786 0.999212 -c:v oapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -qp 25 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_ks_4444 Test Unable to run ffmpeg 6.0103 289,087,212 99.959926 53.027093 0.002176 0.999708 -c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_ks_xq Test Unable to run ffmpeg 6.5933 417,146,280 99.981518 54.100499 6.5e-05 0.999786 -c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444xq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_videotoolbox_yuv444p12le_4444 Test Unable to run ffmpeg 3.2051 267,632,799 99.983472 53.243472 0.0 0.999682 -c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_videotoolbox_yuv444p12le_xq Test Unable to run ffmpeg 3.273 390,144,943 99.984309 54.289465 1e-06 0.99979 -c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v xq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"

chimera_coaster_srgb.%06d Results

File Pathchimera_coaster_srgb.%06d.dpx
Resolution1920 x 1080
Source Frame Rate25.0
Frame Range44200 - 44400
Test Name Test Results Encode Duration File Size VMAF Harmonic Mean PSNR-Y Harmonic Mean CAMBI Harmonic Mean MS-SSIM Harmonic Mean Encode Arguments
test_oapv422-dnxhr_444 Test Unable to run ffmpeg 4.2209 367,003,187 99.956708 46.271904 0.0 0.998941 -c:v dnxhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v dnxhr_444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-oapv_444p12le_qp15 Test Unable to run ffmpeg 6.9929 200,307,025 99.949703 46.05309 0.000175 0.998811 -c:v oapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -qp 18 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-oapv_444p12le_qp20 Test Unable to run ffmpeg 6.3675 167,043,290 99.944525 45.893848 0.001017 0.998718 -c:v oapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -qp 20 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-oapv_444p12le_qp25 Test Unable to run ffmpeg 4.0814 110,241,809 99.920007 45.398203 0.421125 0.998363 -c:v oapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -qp 25 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_ks_4444 Test Unable to run ffmpeg 6.1406 289,797,908 99.888186 46.153405 0.00011 0.998917 -c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_ks_xq Test Unable to run ffmpeg 6.1038 420,307,573 99.938955 46.373795 2e-06 0.998987 -c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444xq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_videotoolbox_yuv444p12le_4444 Test Unable to run ffmpeg 3.2992 282,368,527 99.954425 46.292904 2e-06 0.998924 -c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_videotoolbox_yuv444p12le_xq Test Unable to run ffmpeg 3.2136 418,622,575 99.95686 46.489732 0.0 0.999009 -c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v xq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"

chimera_fountains_srgb.%05d Results

File Pathchimera_fountains_srgb.%05d.dpx
Resolution1920 x 1080
Source Frame Rate25.0
Frame Range5400 - 5600
Test Name Test Results Encode Duration File Size VMAF Harmonic Mean PSNR-Y Harmonic Mean CAMBI Harmonic Mean MS-SSIM Harmonic Mean Encode Arguments
test_oapv422-dnxhr_444 Test Unable to run ffmpeg 3.7751 367,003,187 99.989654 51.428222 0.000177 0.999613 -c:v dnxhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v dnxhr_444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-oapv_444p12le_qp15 Test Unable to run ffmpeg 7.1379 284,837,091 99.988388 51.463771 0.001497 0.999587 -c:v oapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -qp 18 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-oapv_444p12le_qp20 Test Unable to run ffmpeg 6.3306 243,278,979 99.987788 50.874589 0.006205 0.999507 -c:v oapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -qp 20 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-oapv_444p12le_qp25 Test Unable to run ffmpeg 4.8372 160,565,481 99.985722 48.896331 0.047432 0.999111 -c:v oapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -qp 25 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_ks_4444 Test Unable to run ffmpeg 6.109 290,898,134 99.982804 51.003487 0.00174 0.99958 -c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_ks_xq Test Unable to run ffmpeg 6.482 434,315,975 99.98622 52.369946 0.000364 0.999705 -c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444xq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_videotoolbox_yuv444p12le_4444 Test Unable to run ffmpeg 3.2363 277,985,119 99.988492 51.141285 0.001302 0.999526 -c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_videotoolbox_yuv444p12le_xq Test Unable to run ffmpeg 3.3133 411,404,079 99.989199 52.872994 0.0 0.999717 -c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v xq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"

chimera_wind_srgb.%06d Results

File Pathchimera_wind_srgb.%06d.dpx
Resolution1920 x 1080
Source Frame Rate25.0
Frame Range66600 - 66800
Test Name Test Results Encode Duration File Size VMAF Harmonic Mean PSNR-Y Harmonic Mean CAMBI Harmonic Mean MS-SSIM Harmonic Mean Encode Arguments
test_oapv422-dnxhr_444 Test Unable to run ffmpeg 3.8527 367,003,187 98.226221 51.266218 0.000408 0.999734 -c:v dnxhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v dnxhr_444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-oapv_444p12le_qp15 Test Unable to run ffmpeg 5.9017 238,712,626 98.160588 50.920927 0.001301 0.999669 -c:v oapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -qp 18 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-oapv_444p12le_qp20 Test Unable to run ffmpeg 5.5707 202,209,362 98.101011 50.457375 0.003486 0.999605 -c:v oapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -qp 20 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-oapv_444p12le_qp25 Test Unable to run ffmpeg 3.7751 134,328,949 97.890843 49.081755 0.151805 0.999361 -c:v oapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -qp 25 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_ks_4444 Test Unable to run ffmpeg 5.7151 289,484,418 97.613483 50.891219 0.003129 0.999702 -c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_ks_xq Test Unable to run ffmpeg 6.1648 431,778,372 97.91316 51.644195 0.000365 0.99977 -c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444xq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_videotoolbox_yuv444p12le_4444 Test Unable to run ffmpeg 3.2031 270,919,503 98.14643 50.987787 0.000591 0.999683 -c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_videotoolbox_yuv444p12le_xq Test Unable to run ffmpeg 3.3619 419,008,079 98.219421 51.973291 0.0 0.999792 -c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v xq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"

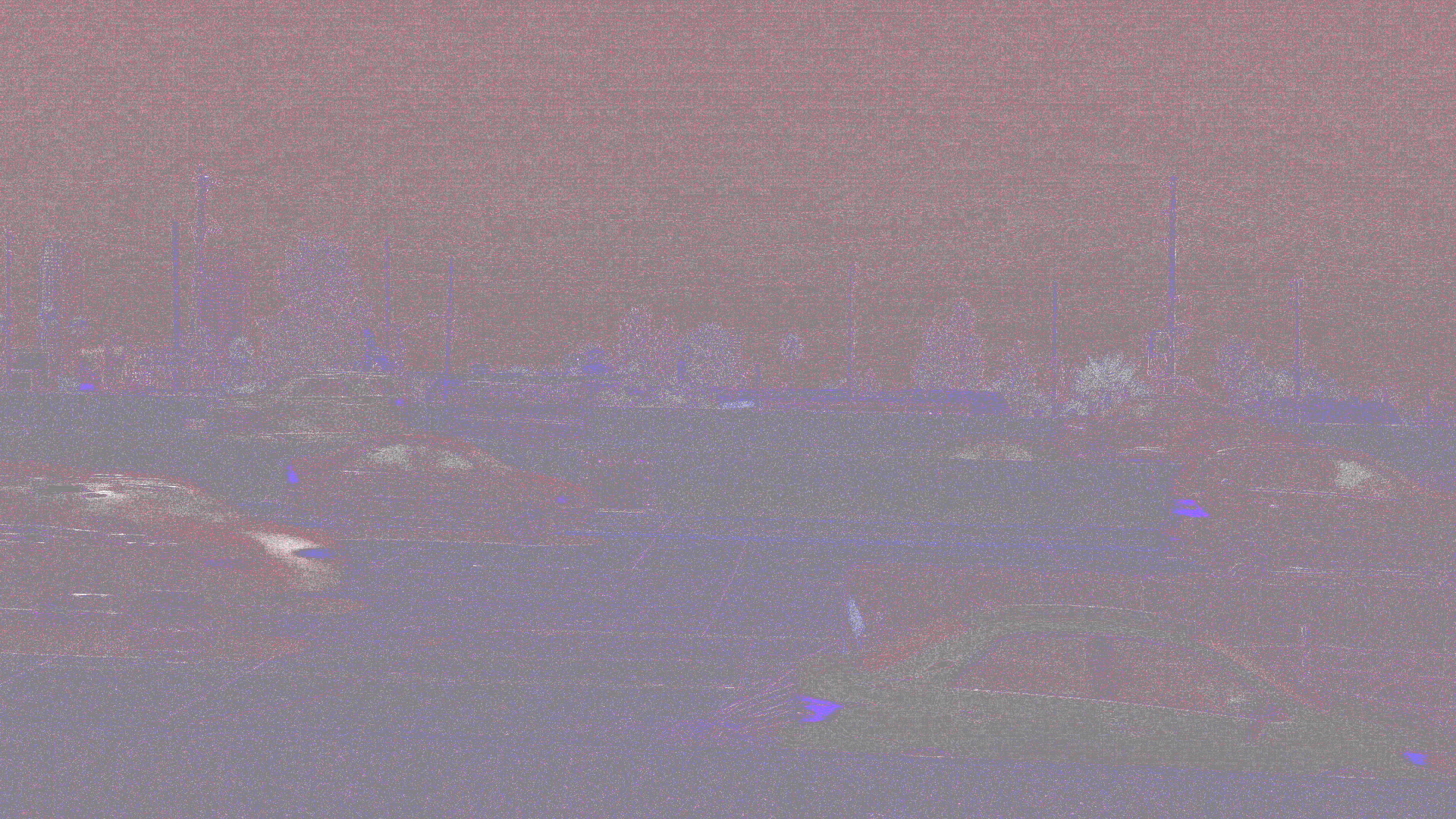

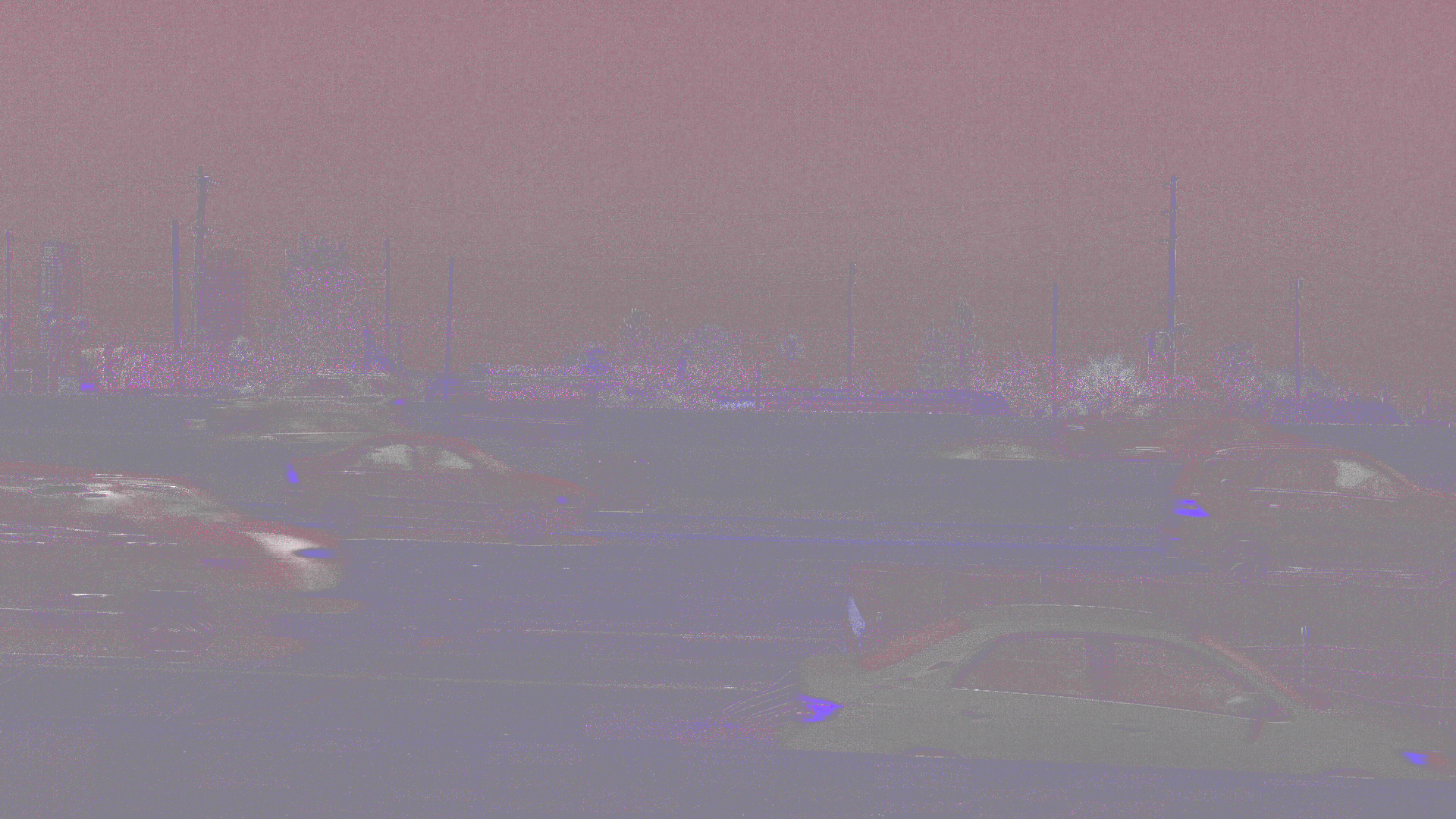

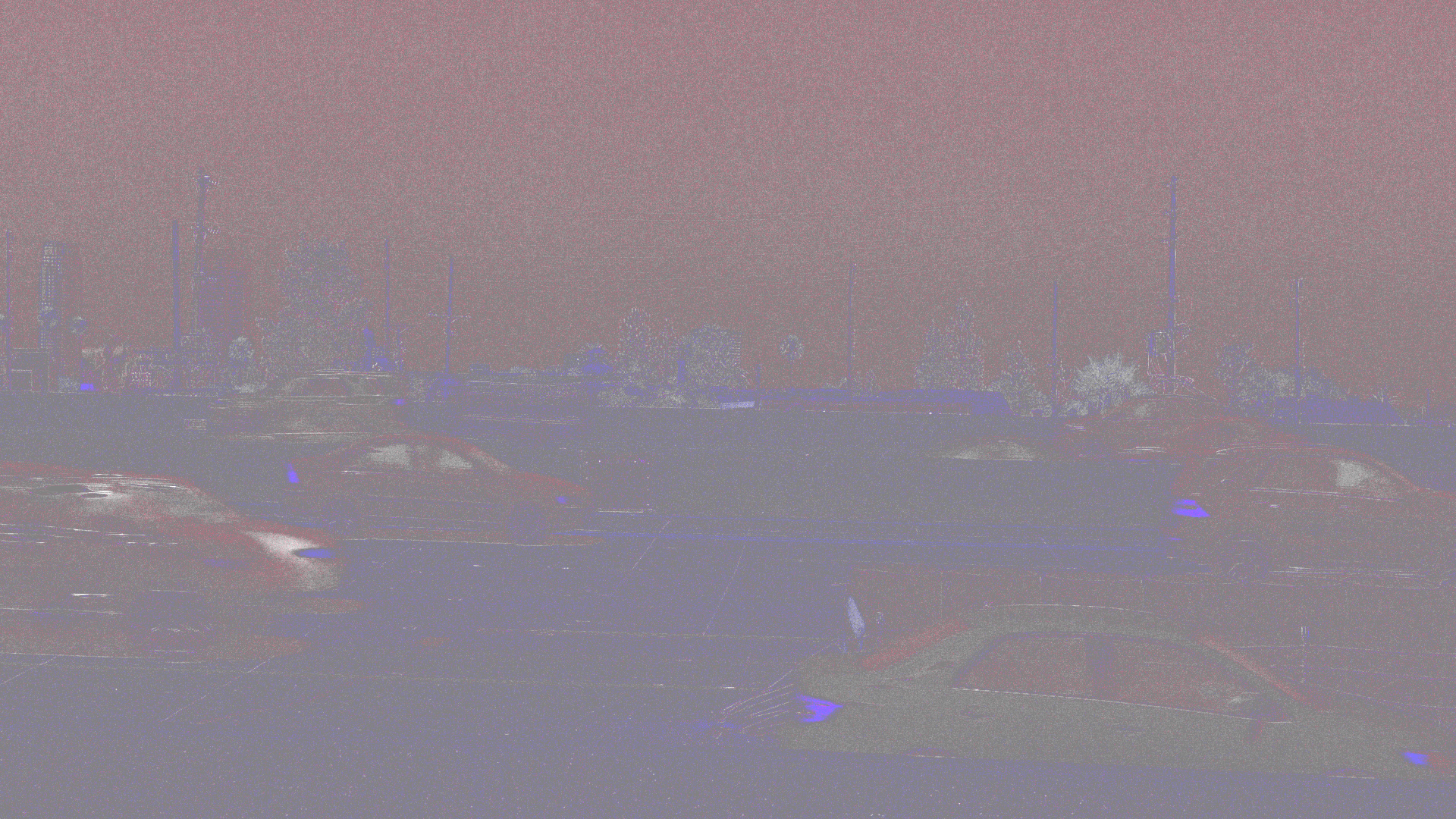

Compare Images

Pictures

chimera_cars_srgb.%05d Results

File Pathchimera_cars_srgb.%05d.dpx
Resolution1920 x 1080
Source Frame Rate25.0
Frame Range2500 - 2700
Test Name PNG movie Encode Arguments

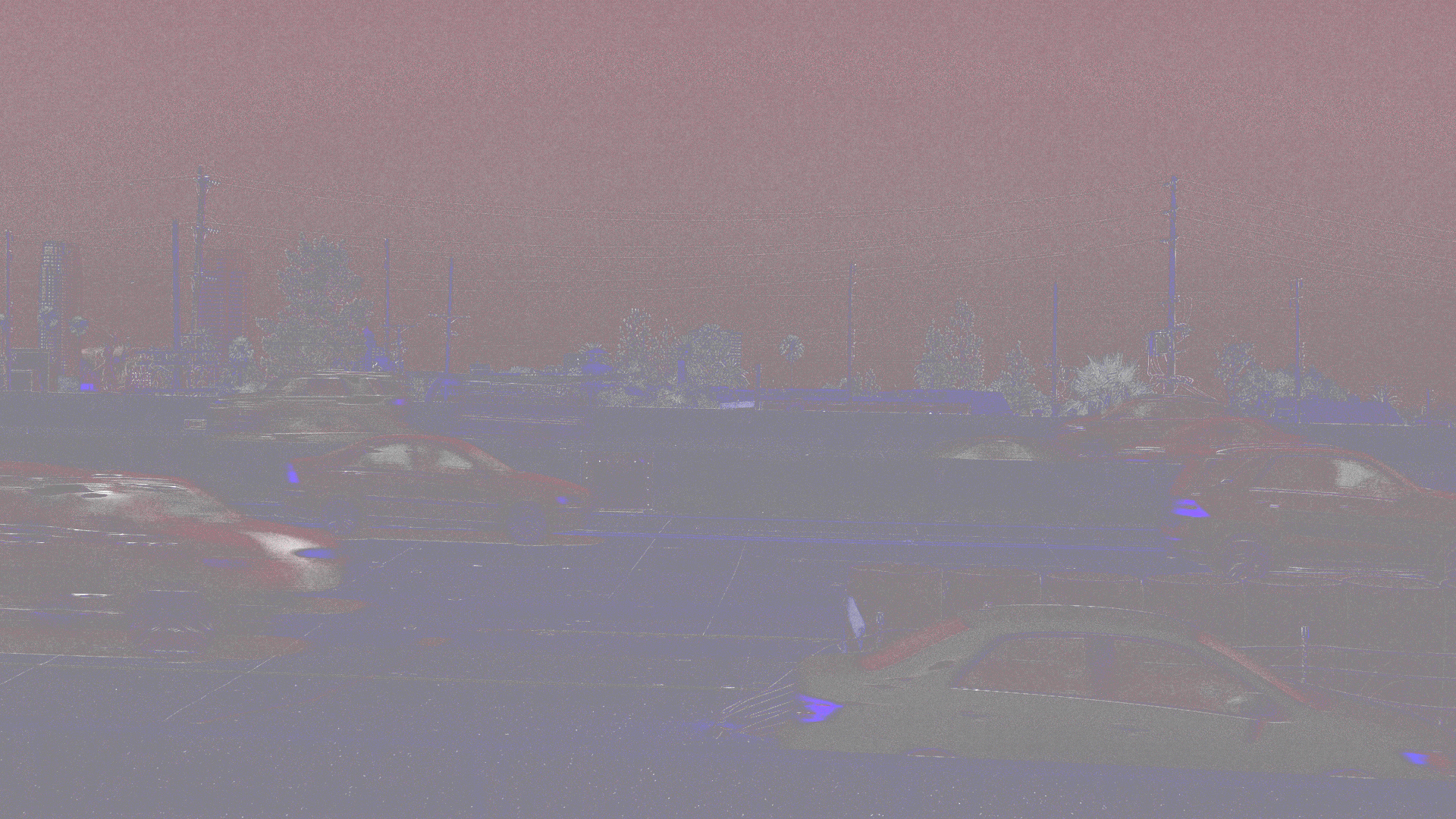

test_oapv422-dnxhr_444 -c:v dnxhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v dnxhr_444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-oapv_444p12le_qp15 -c:v oapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -qp 18 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"

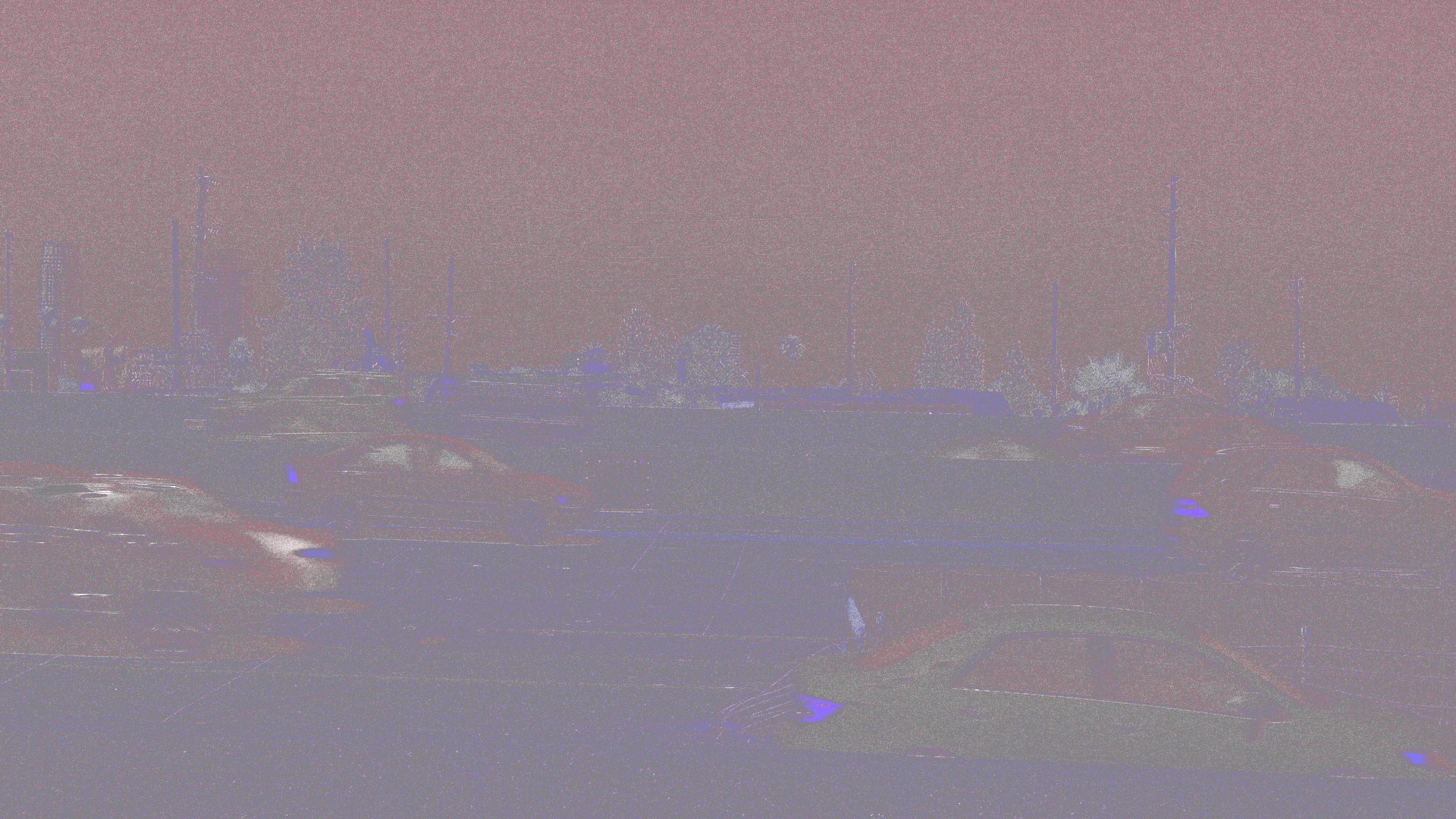

test_oapv422-oapv_444p12le_qp20 -c:v oapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -qp 20 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-oapv_444p12le_qp25 -c:v oapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -qp 25 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_ks_4444 -c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"

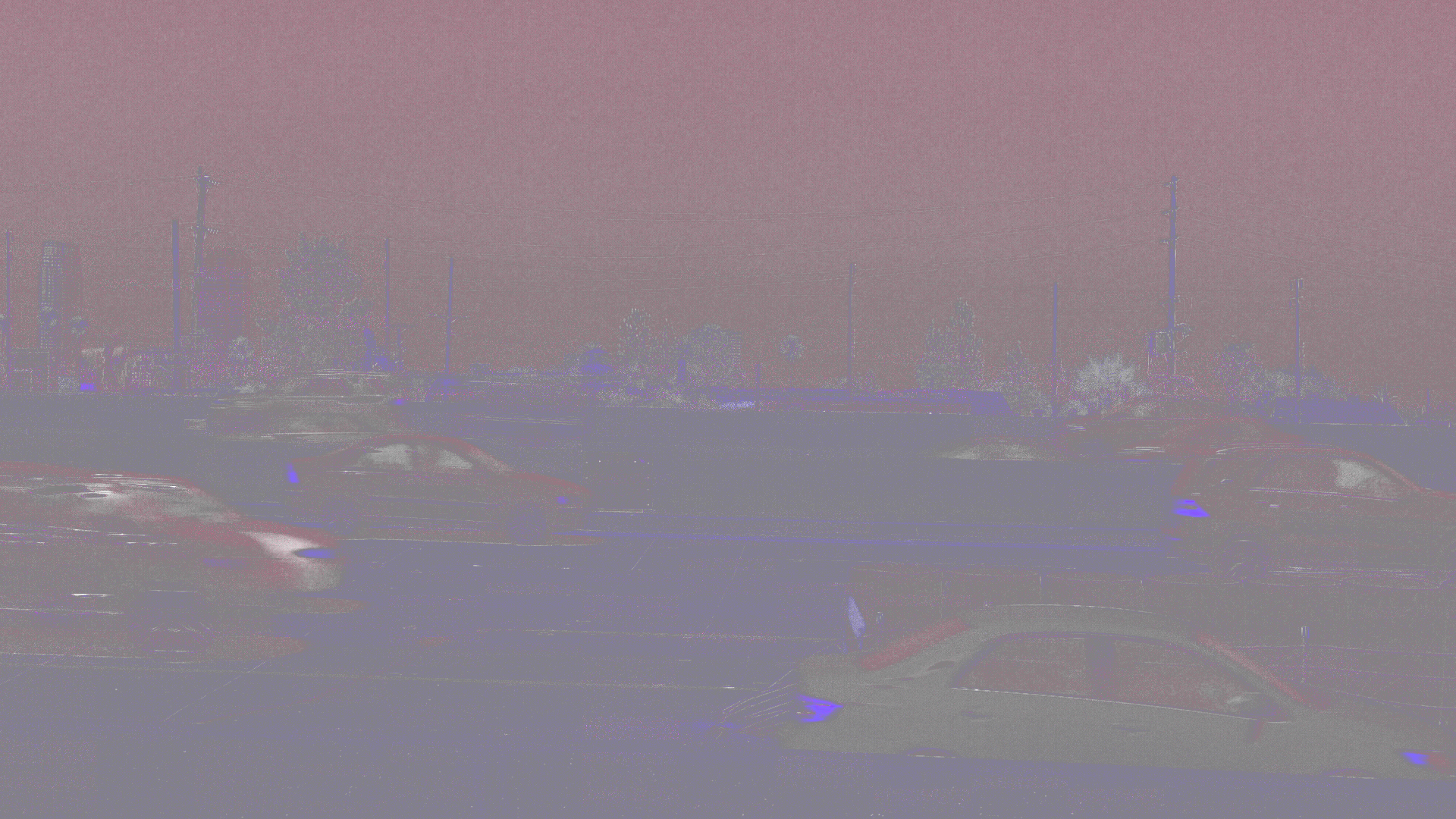

test_oapv422-prores_ks_xq -c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444xq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"

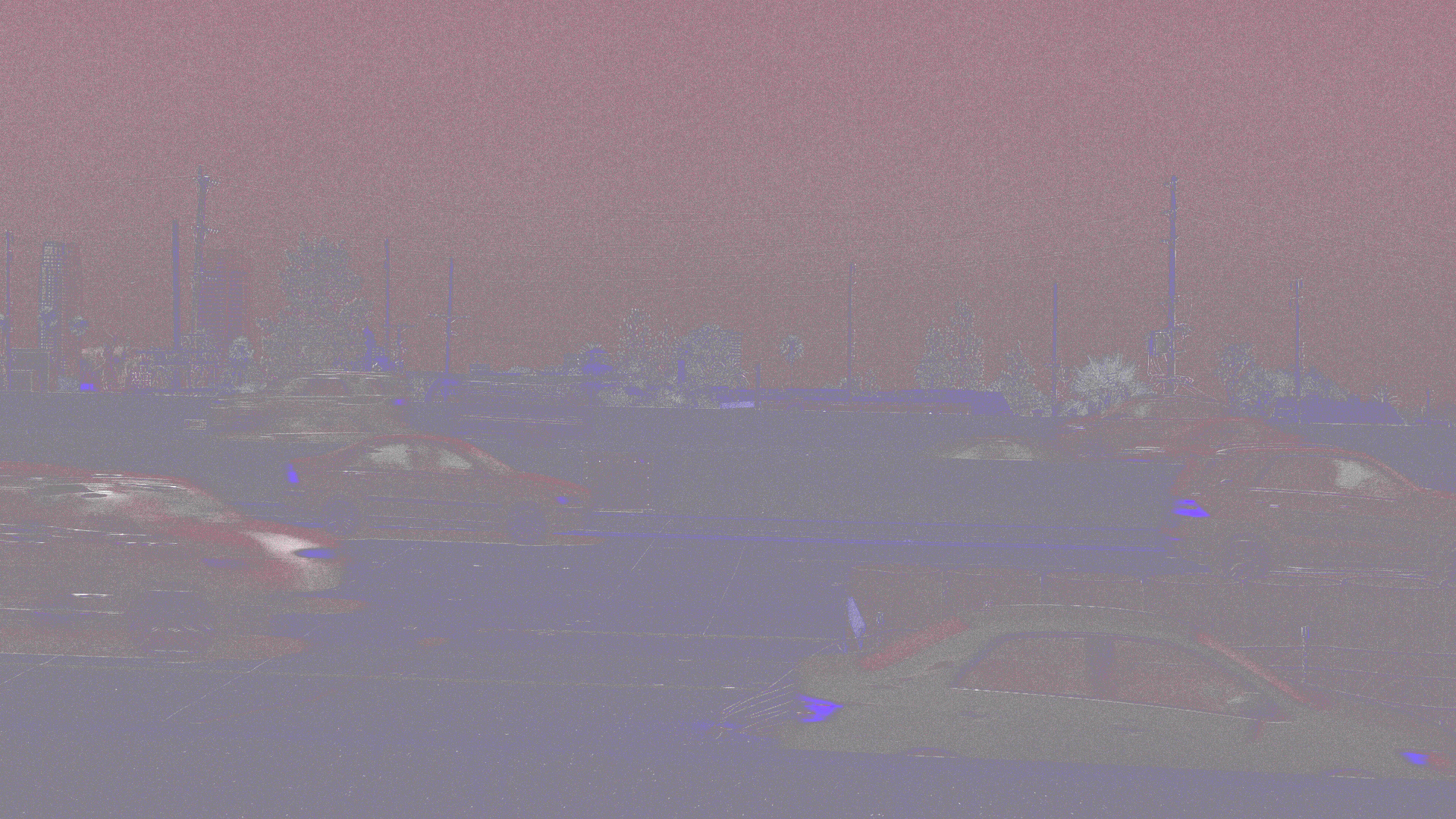

test_oapv422-prores_videotoolbox_yuv444p12le_4444 -c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"

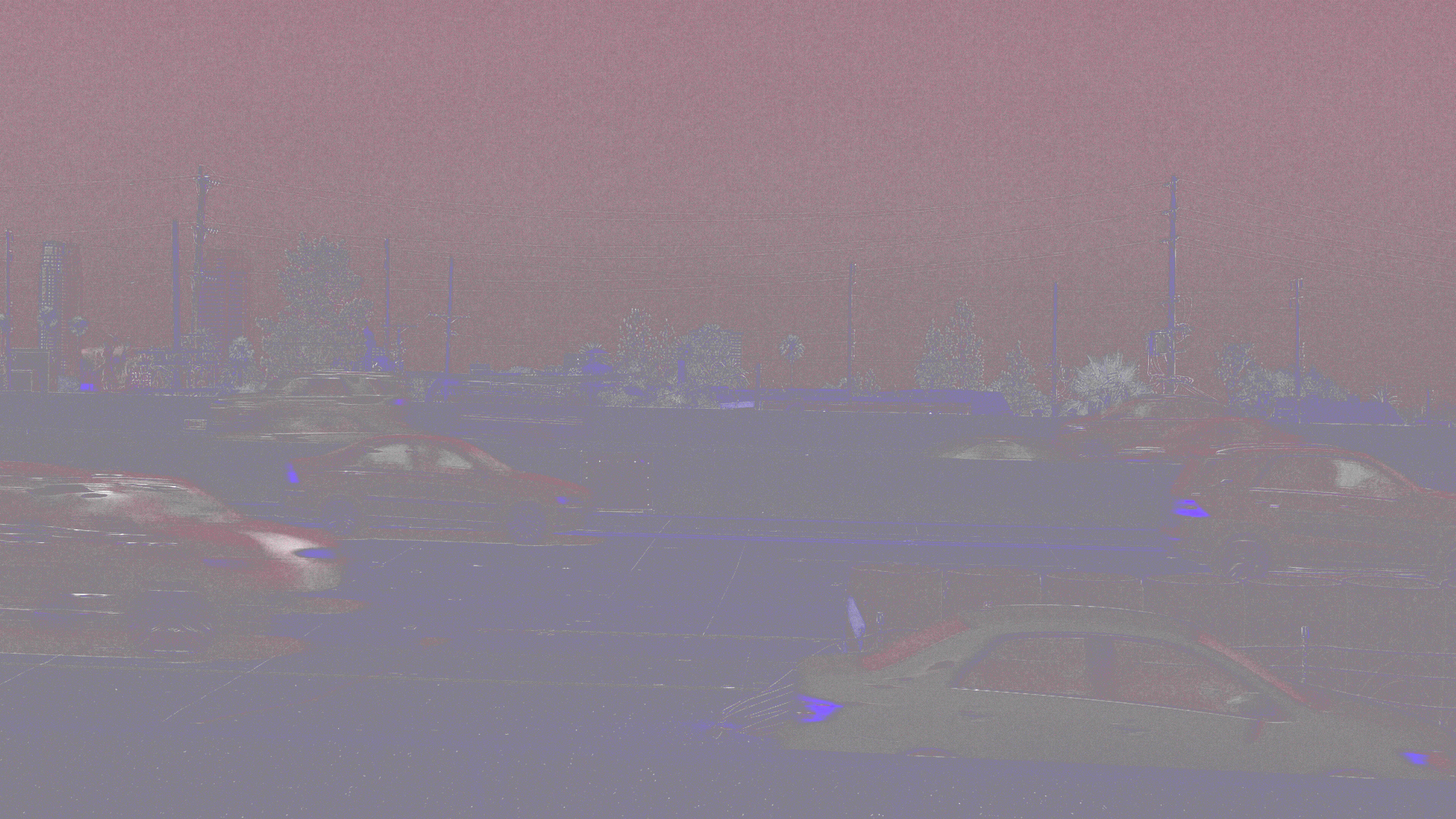

test_oapv422-prores_videotoolbox_yuv444p12le_xq -c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v xq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"

chimera_coaster_srgb.%06d Results

File Pathchimera_coaster_srgb.%06d.dpx
Resolution1920 x 1080
Source Frame Rate25.0
Frame Range44200 - 44400
Test Name PNG movie Encode Arguments
test_oapv422-dnxhr_444 -c:v dnxhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v dnxhr_444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-oapv_444p12le_qp15 -c:v oapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -qp 18 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-oapv_444p12le_qp20 -c:v oapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -qp 20 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-oapv_444p12le_qp25 -c:v oapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -qp 25 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_ks_4444 -c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_ks_xq -c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444xq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_videotoolbox_yuv444p12le_4444 -c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_videotoolbox_yuv444p12le_xq -c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v xq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"

chimera_fountains_srgb.%05d Results

File Pathchimera_fountains_srgb.%05d.dpx
Resolution1920 x 1080
Source Frame Rate25.0
Frame Range5400 - 5600
Test Name PNG movie Encode Arguments
test_oapv422-dnxhr_444 -c:v dnxhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v dnxhr_444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"

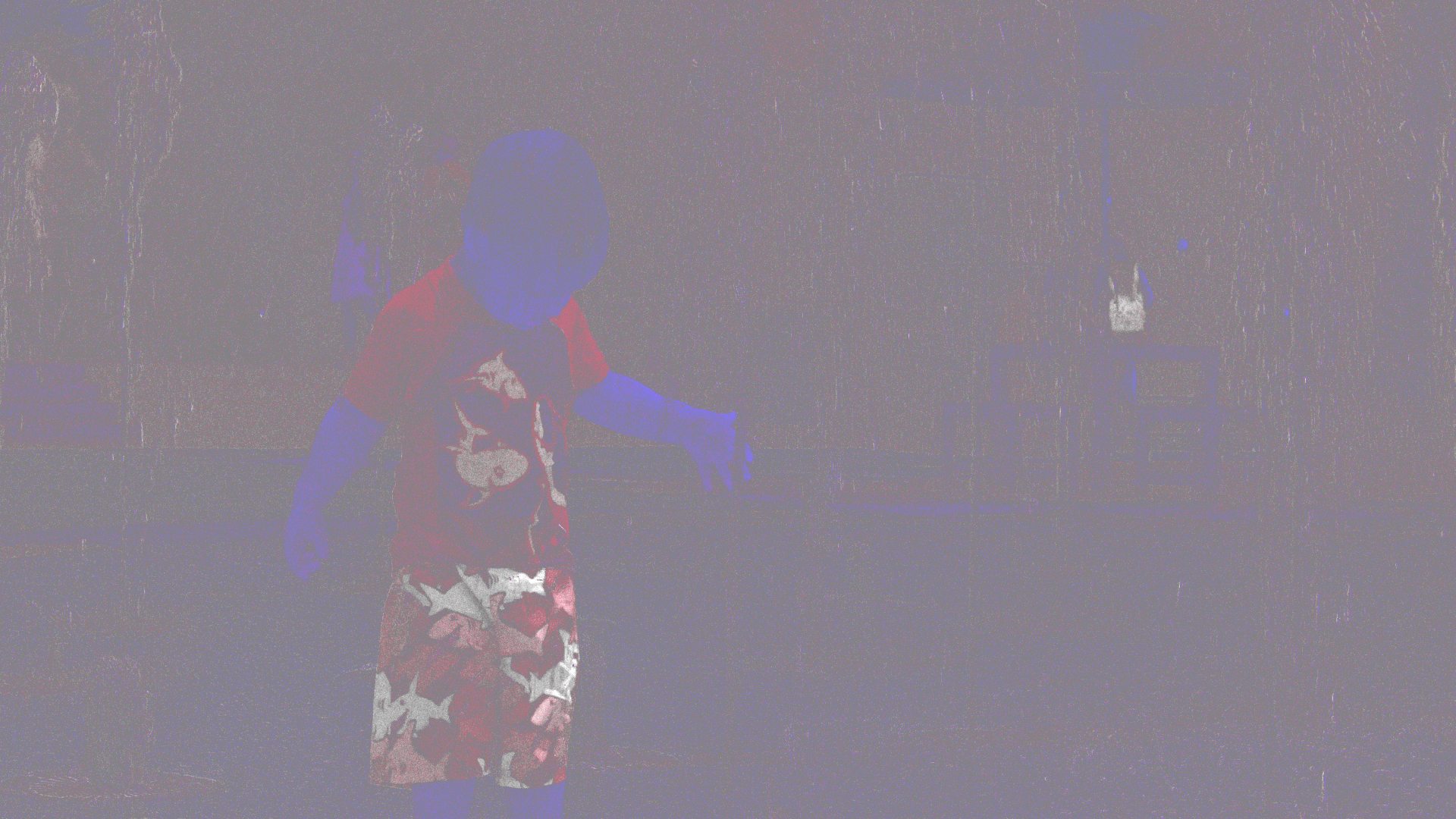

test_oapv422-oapv_444p12le_qp15 -c:v oapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -qp 18 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-oapv_444p12le_qp20 -c:v oapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -qp 20 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-oapv_444p12le_qp25 -c:v oapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -qp 25 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"

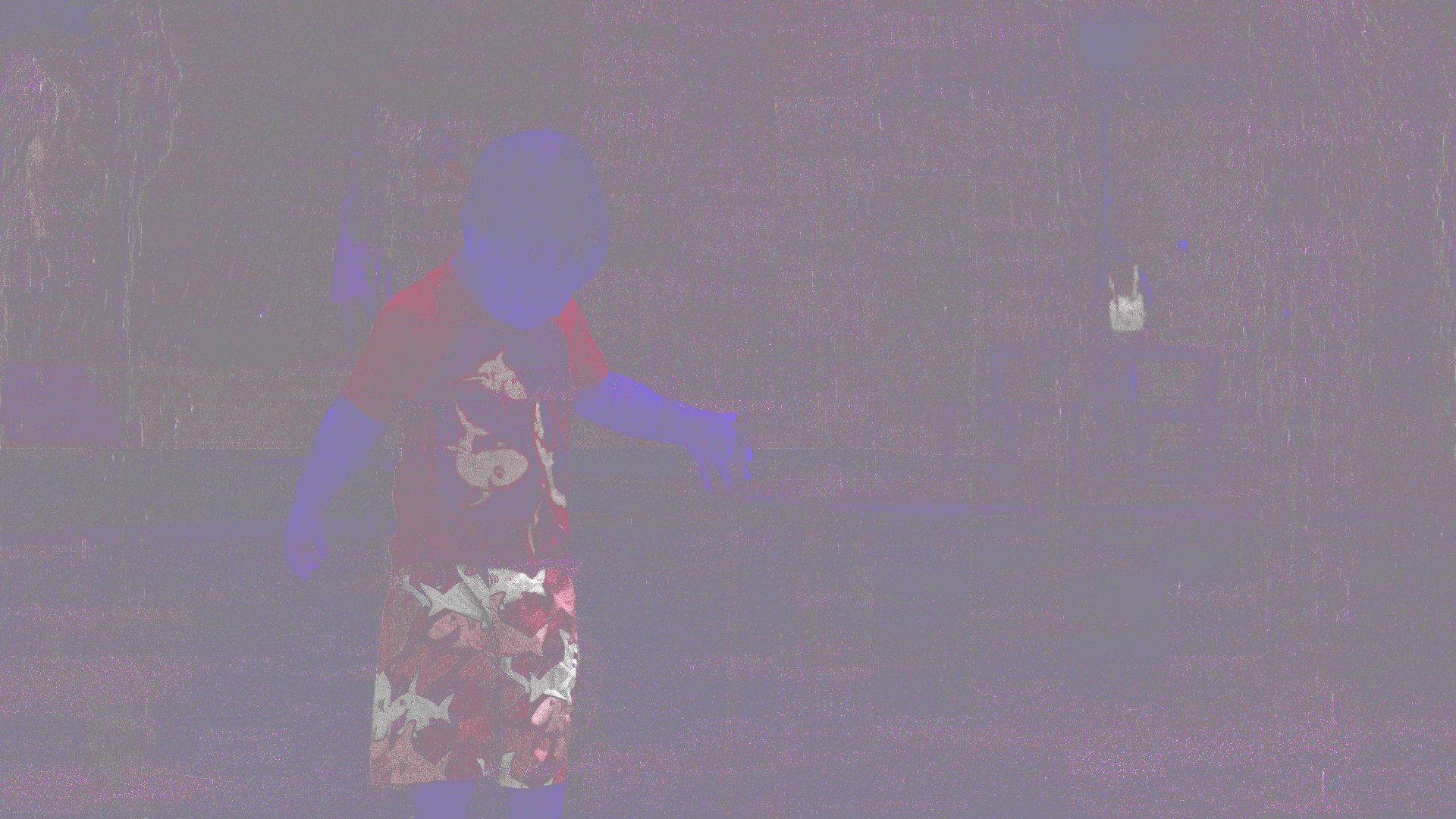

test_oapv422-prores_ks_4444 -c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_ks_xq -c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444xq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_videotoolbox_yuv444p12le_4444 -c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"

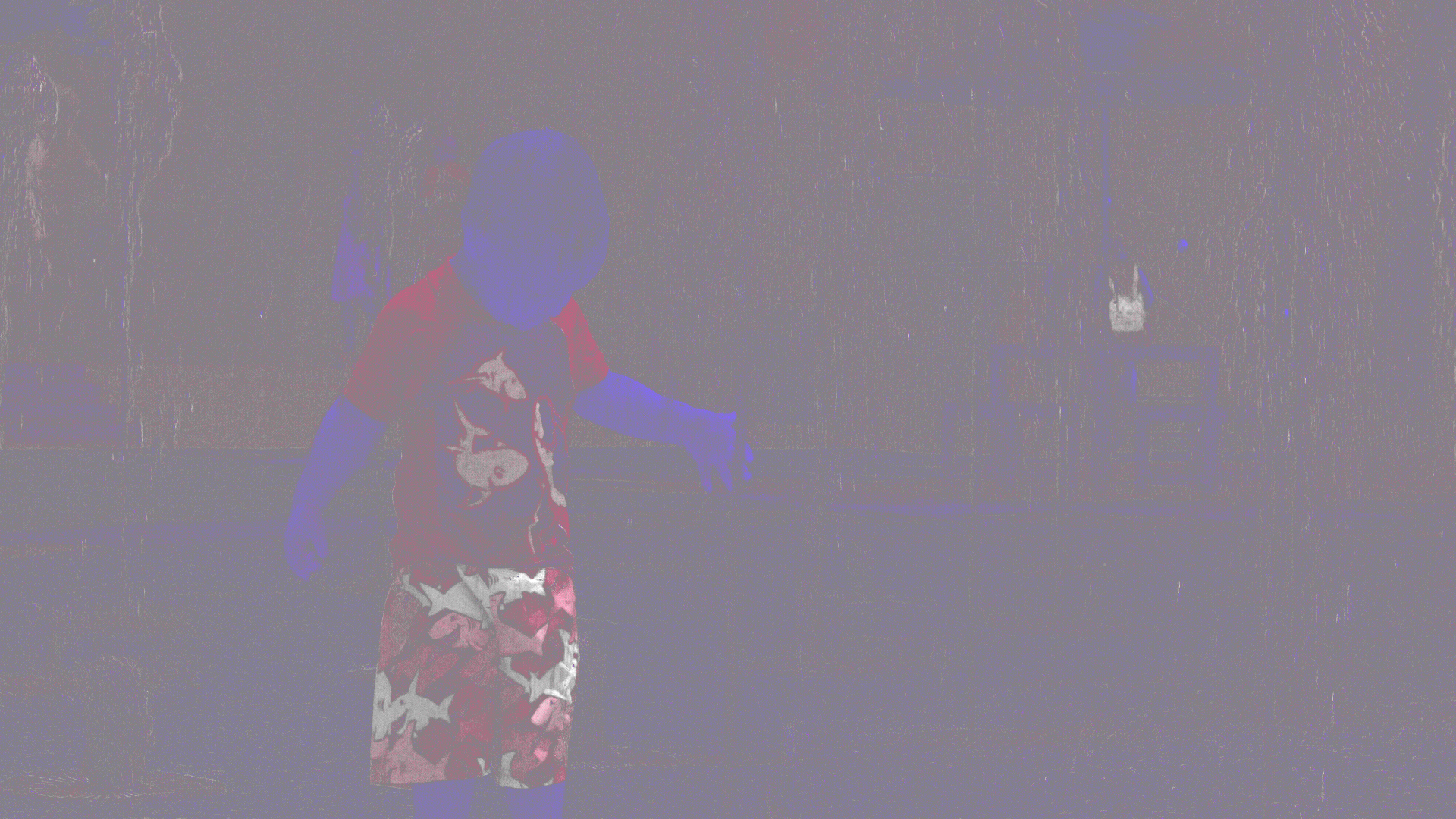

test_oapv422-prores_videotoolbox_yuv444p12le_xq -c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v xq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"

chimera_wind_srgb.%06d Results

File Pathchimera_wind_srgb.%06d.dpx
Resolution1920 x 1080
Source Frame Rate25.0
Frame Range66600 - 66800
Test Name PNG movie Encode Arguments
test_oapv422-dnxhr_444 -c:v dnxhd -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v dnxhr_444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"

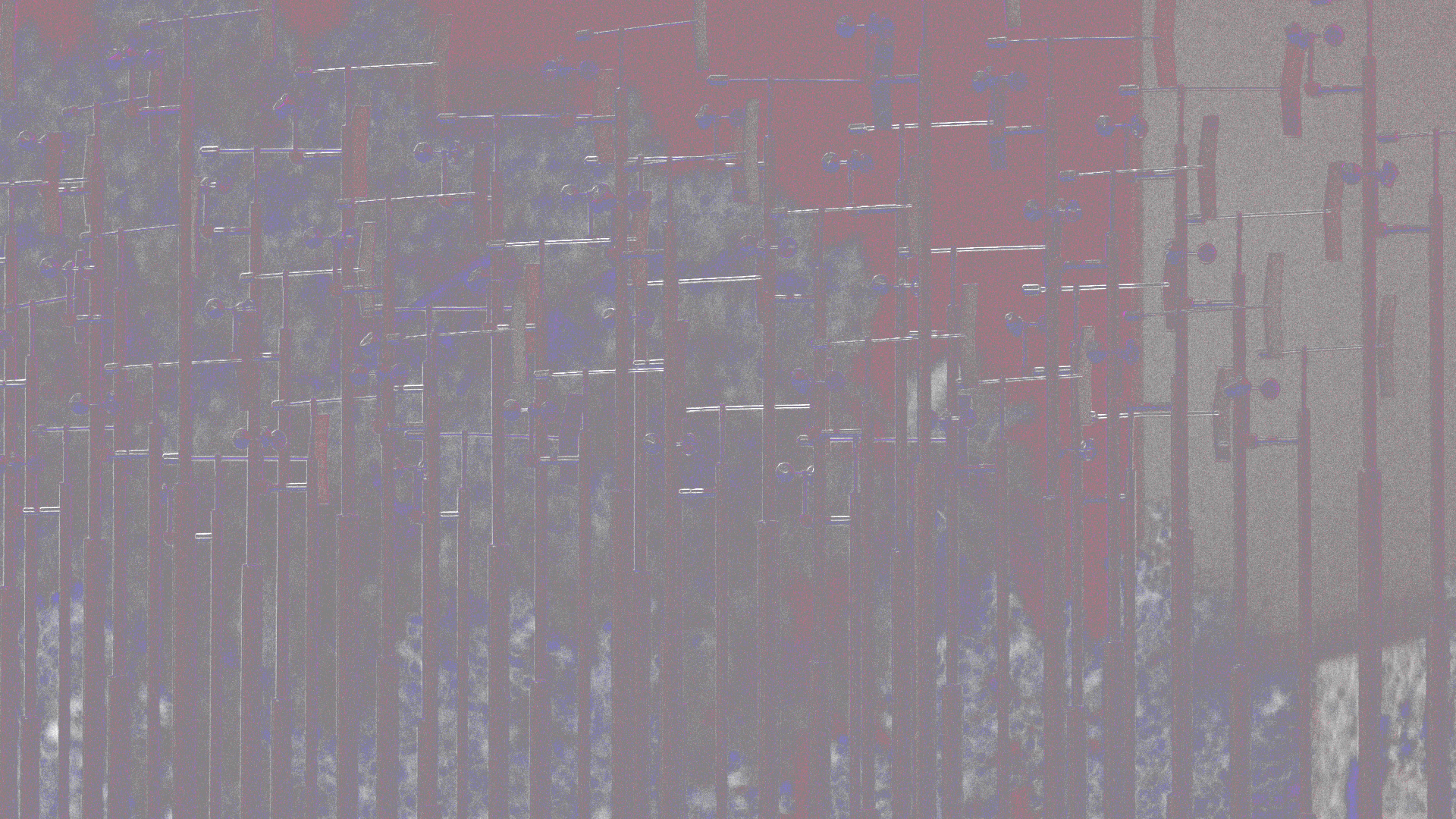

test_oapv422-oapv_444p12le_qp15 -c:v oapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -qp 18 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-oapv_444p12le_qp20 -c:v oapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -qp 20 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-oapv_444p12le_qp25 -c:v oapv -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -qp 25 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_ks_4444 -c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_ks_xq -c:v prores_ks -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444xq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_videotoolbox_yuv444p12le_4444 -c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v 4444 -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
test_oapv422-prores_videotoolbox_yuv444p12le_xq -c:v prores_videotoolbox -color_primaries bt709 -color_range tv -color_trc iec61966-2-1 -colorspace bt709 -pix_fmt yuv444p12le -profile:v xq -sws_flags spline+accurate_rnd+full_chroma_int -vf "scale=in_range=full:in_color_matrix=bt709:out_range=tv:out_color_matrix=bt709"
